Use this guide to replace either your external LCD or the larger main LCD. If one is broken, both need to be replaced as it is one unit.

  1. UWYaIcDvld24bJlS
    UWYaIcDvld24bJlS
    LuLxFFi54EfiJkmv
    • Remove the back cover of your cell phone by applying slight pressure with your thumb and pushing up towards the top of the phone.

    • Lift off back cover.

  2. 1yBq6njd6seFpdot
    1yBq6njd6seFpdot
    YYil5fXeP4tlH4aZ
    rsBHC2eLfRIOWvX3
    • Use your index finger to first push down and then lift up the battery as shown.

    • Remove battery from cell phone.

  3. XTaoFHkvocOCnPWn
    XTaoFHkvocOCnPWn
    XhVgWStOLxmCIMvd
    • Unscrew two T5 torx screws easily visible on the back side of the cell phone

    • Screws: 7.8mm

    • Once screw are removed, the phone will separate easily into two pieces connected by a flexible wire strip.

    • Be sure to not lose or disconnect the indicated piece that the screw mounts to. It is spring loaded and is very dificult to reattach.

  4. 6XsjtKkUu53HeDnC
    6XsjtKkUu53HeDnC
    Lyg6m3FWQLWboqYv
    ES1JJ5kIIpOHVIGH
    • Use an iPod opening tool to gently pry open the back case as indicated in the picture.

    • Work your way down the side of the phone starting from the top down to the bottom. (Use multiple prying tools if necessary)

    • REPEAT on both sides, and be careful not to stab the circuitry with the tools.

  5. xfRsmtNYqRgvqKTs
    xfRsmtNYqRgvqKTs
    HM4SeSr1q5tSZSJi
    KWRXIL5wvVED4KsN
    • Gently pull the phone apart and the flexible wire should detach from its connection as shown.

    • If not, lift up on the black tab within the left box in the picture.

    • With the front half of the phone, push the keypad towards the removed portion of the phone.

    • To clean, use a damp cloth with water.

  6. BRsCKeTN3D3VXg2R
    BRsCKeTN3D3VXg2R
    xrsA5LO4nde1AUsY

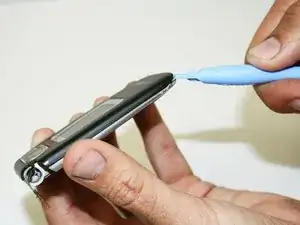

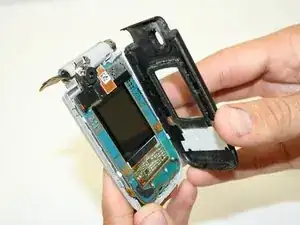

    • Using an iPod opening tool, pry open the case that houses the LCD screens by inserting it at the bottom as shown.

    • VERY FRAGILE!! Don't press hard on either side of the LED.

    • Run the tool all along the edge between the darker front case and silver back.

    • Rather difficult to open this part, be careful not to compromise the screens.

  7. Ieq6mANWVxaoGXAF
    Ieq6mANWVxaoGXAF
    uyqUcKA4HKYNqICG

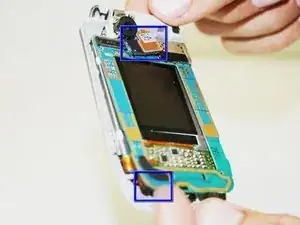

    • Remove the first flex-wire connection by inserting your thumbnail directly underneath the connection as shown. Will pry off easily.

    • This flex-wire connects the LCD logic board to the main logic board removed earlier.

    • Remove the two other flex-wire connections at the top and bottom of the LCD logic board. Pry up on the respective connections as shown.

    • Square LCD logic board will detach now.

  8. CnbTsAFoUlDgVOml
    CnbTsAFoUlDgVOml
    dIZUNUmHx3mbTJnu
    FOBGPyVhwkbO1WcN

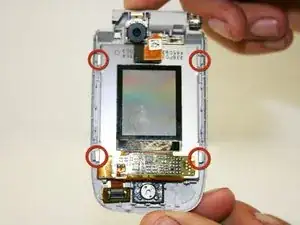

    • Pry back the associated tabs using your thumbnail or an iPod opening tool by pulling them away from the LCD panel.

    • LCD can now be removed easily.

    • To clean use any multipurpose lens cleaner and a soft cloth. DO NOT get lens cleaner on any electronic component!

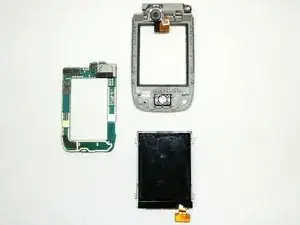

    • Shown:

    • LCD (Main display side)

    • LCD logic board

    • Case that holds above components and camera.

Abschluss

To reassemble your device, follow these instructions in reverse order.
