Einleitung

  1. UWYaIcDvld24bJlS
    UWYaIcDvld24bJlS
    LuLxFFi54EfiJkmv
    • Remove the back cover of your cell phone by applying slight pressure with your thumb and pushing up towards the top of the phone.

    • Lift off back cover.

  2. 1yBq6njd6seFpdot
    1yBq6njd6seFpdot
    YYil5fXeP4tlH4aZ
    rsBHC2eLfRIOWvX3
    • Use your index finger to first push down and then lift up the battery as shown.

    • Remove battery from cell phone.

  3. XTaoFHkvocOCnPWn
    XTaoFHkvocOCnPWn
    XhVgWStOLxmCIMvd
    • Unscrew two T5 torx screws easily visible on the back side of the cell phone

    • Screws: 7.8mm

    • Once screw are removed, the phone will separate easily into two pieces connected by a flexible wire strip.

    • Be sure to not lose or disconnect the indicated piece that the screw mounts to. It is spring loaded and is very dificult to reattach.

  4. 6XsjtKkUu53HeDnC
    6XsjtKkUu53HeDnC
    Lyg6m3FWQLWboqYv
    ES1JJ5kIIpOHVIGH
    • Use an iPod opening tool to gently pry open the back case as indicated in the picture.

    • Work your way down the side of the phone starting from the top down to the bottom. (Use multiple prying tools if necessary)

    • REPEAT on both sides, and be careful not to stab the circuitry with the tools.

  5. xfRsmtNYqRgvqKTs
    xfRsmtNYqRgvqKTs
    HM4SeSr1q5tSZSJi
    KWRXIL5wvVED4KsN
    • Gently pull the phone apart and the flexible wire should detach from its connection as shown.

    • If not, lift up on the black tab within the left box in the picture.

    • With the front half of the phone, push the keypad towards the removed portion of the phone.

    • To clean, use a damp cloth with water.

  6. kJoFJytynIXGAwGU
    • Use a T6 Torx Screwdriver to remove the screw located in the bottom right corner of the back panel.

    • Screw: 6.4 mm

  7. K4mOEYpL1XKaSAaX
    K4mOEYpL1XKaSAaX
    GmDZTIFdTRjp2wMX
    • Lift up from the top of the logic board as shown to remove.

  8. 2hJ2PUa1mnQ3A2Je
    2hJ2PUa1mnQ3A2Je
    SDqQTWvCyThaBpVv

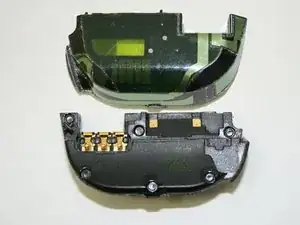

    • After removing the logic board from the back of the phone, pry the speaker out from the bottom with an iPod opening tool.

    • It should pop out easily

Abschluss

To reassemble your device, follow these instructions in reverse order.
