Nokia 6200 Classic Circuit Board Replacement

Geschrieben von: Reid Polstra
  • Kommentare: 0
Nokia 6200 Classic Circuit Board Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

10 Minuten

Einleitung

This guide requires that the front plate and keypad already be removed. You will have to remove 6 screws and separate the circuit board from the rest of the phone.

  1. tIgpTkVmiKO3c6ce
    tIgpTkVmiKO3c6ce
    bCZQI4PcbcCWH6oE
    AWhvaalLwLPFbP3q

    • Pull up on both of the clips near the bottom of the phone as shown.

    • Lift off the front plate.

  2. 2WAZkWeCZPChwxLr

    • The keypad and LCD screen are revealed.

  3. LawjIIGoXJDU21Sm
    LawjIIGoXJDU21Sm
    3qhTtQrq2B5OoBXm

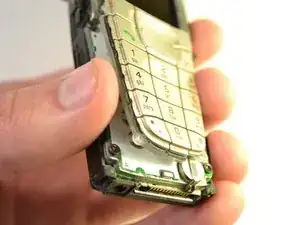

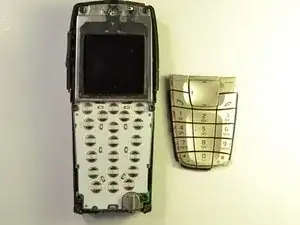

    • Separate the keypad from the phone and place aside.

    • Wipe off any excess dust from where the keypad was attached to the phone.

  4. MXapLYNMXdZj5SMA
    MXapLYNMXdZj5SMA
    fKuPgQGiGWMOp6RF

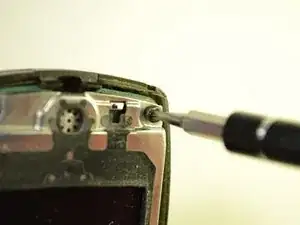

    • Remove the 6 - 7.9 mm screws highlighted by the markers using the T-6 head on the screwdriver.

  5. FGuYjihxBSTIG2gn
    FGuYjihxBSTIG2gn
    KkjRFlEQMXOxXAPB

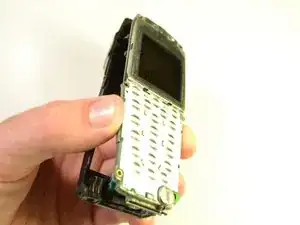

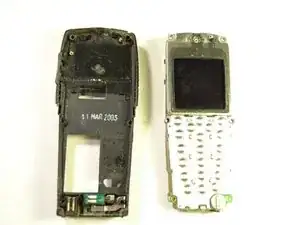

    • Separate the inside of the phone from the back of the phone.

  6. IgqoAyov1uo5s6fp
    IgqoAyov1uo5s6fp
    oQXtmETTWlRBl2d3

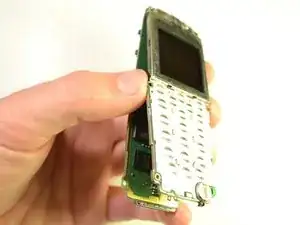

    • Gently pull apart the circuit board from the rest of the phone.

    • There is a small connector holding these two pieces together, so use caution when pulling apart so as not to damage it.

Abschluss

To reattach the circuit board, line up the connector at the top of the board with the back of the LCD Screen attachment. Place the two boards together, and screw in the 6 screws.
