Einleitung

The front plate has to be removed before the keypad can be reached. No tools are required.

  1. tIgpTkVmiKO3c6ce
    tIgpTkVmiKO3c6ce
    bCZQI4PcbcCWH6oE
    AWhvaalLwLPFbP3q
    • Pull up on both of the clips near the bottom of the phone as shown.

    • Lift off the front plate.

  2. 2WAZkWeCZPChwxLr
    • The keypad and LCD screen are revealed.

  3. A1NHupFQHvItVRoP
    A1NHupFQHvItVRoP
    SMkepRUuhjIiNbJR

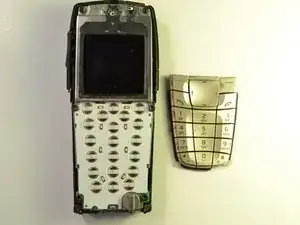

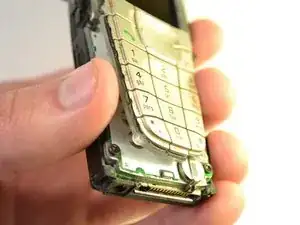

    • Separate the keypad from the phone and place aside.

    • Wipe off any excess dust from where the keypad was attached to the phone.

  4. xBMCayjAWijYWNvP
    xBMCayjAWijYWNvP
    3hXKcnDSWXVBRJ4m

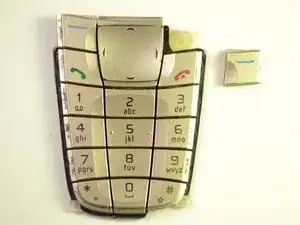

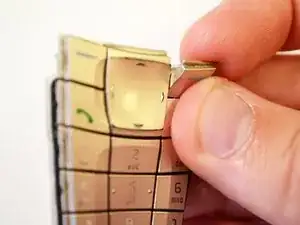

    • Lift up on the button to remove it.

Abschluss

To reattach any keys, simply snap new buttons onto the keypad and reattach the keypad onto the phone.
