Nokia 6230b KeyPad Replacement

Geschrieben von: Spencer Lines
  • Kommentare: 0
Nokia 6230b KeyPad Replacement

Schwierigkeitsgrad

Easy

Schritte

4

Zeitaufwand

10 Sekunden

Einleitung

There are no tools necessary for this repair. The repair is very simple and can be accomplished by most people.

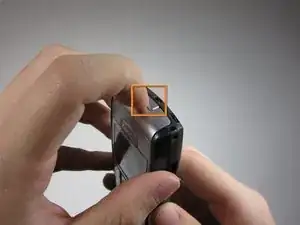

  1. hxSKqlqxLwfkufIv

    • Press the silver button on the top of the phone.

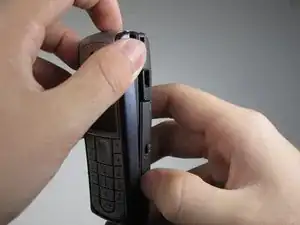

  2. T6LwrgFDTMQy1Hqf

    • Slide your thumbnail down the case seam to separate the rest of the case.

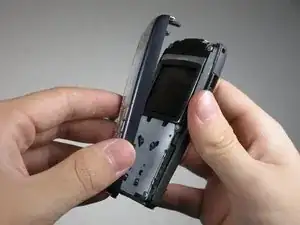

  3. AAZdv5ZZbDFjfLUm

    • Gently remove the case.

    • Careful! Do not bend the plastic tabs.

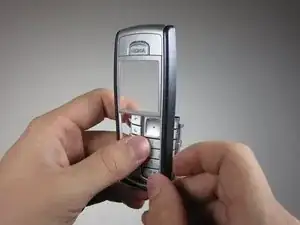

  4. YyBi4KGfTSdheHc5

    • Pick up the front cover.

    • Gently push the front of the keypad toward the back of the front cover.

Abschluss

To reassemble your device, follow these instructions in reverse order.
