Nokia 6310i Screen Replacement

Geschrieben von: Spencer Silvestre
  • Kommentare: 2
Nokia 6310i Screen Replacement

Schwierigkeitsgrad

Moderate

Schritte

8

Zeitaufwand

15 - 20 Minuten

Einleitung

This guide is to instruct the reader how to disassemble the Nokia 6310i so that they can access the screen.

  1. MNgCRrABnmpXhGE5
    MNgCRrABnmpXhGE5
    NJktwCusJaMJIOwV

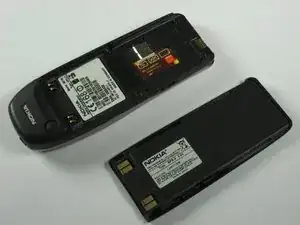

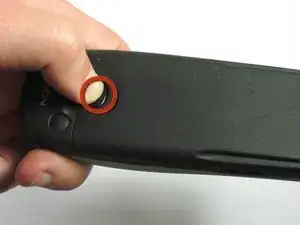

    • Press and hold the battery release button and slide the battery away from the Nokia logo

  2. G2KvEGTSEWL5KcR3
    G2KvEGTSEWL5KcR3
    JZDDU3hQpbfG6ZL6
    refJ2Tab3SjOpqAW

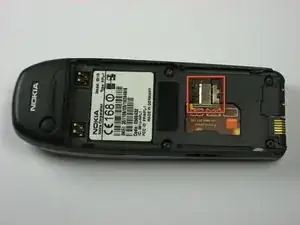

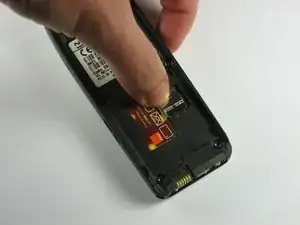

    • Slide the SIM card lock away from the SIM card.

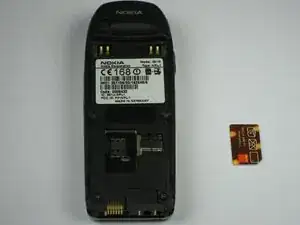

    • The SIM card pops out. Remove the SIM card.

  3. ciKpDgoxCuXVXj2c

    • Unscrew and remove the four T6 Torx screws.

    Needs updating with a picture with no SIM card.

    Mustafa -

    A comment for anyone wanting to clean the metal contacts to improve keypad response, make sure you spray iso alcohol onto a lint free cloth and wipe the contacts, not onto the device itself and definitely not onto the LCD screen, as it can leave a marl on the screen. Luckily it evaporated eventually but only after 48hrs...

    John -

  4. N6wmj661NSSV6V4j
    N6wmj661NSSV6V4j
    kbxQN2VIJhbYAghq
    ReBOPVv25JIIdCHx

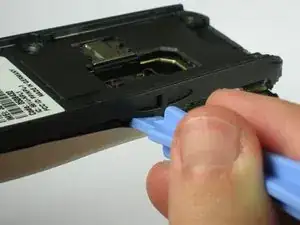

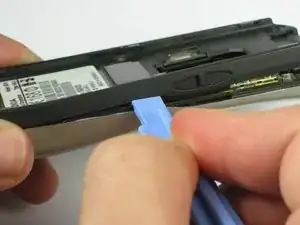

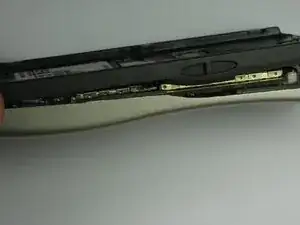

    • Insert a plastic opening tool between the faceplate and the black backplate. Gently pry them apart, working from the lower end to the upper side of the phone.

  5. OgCms2Ig2vpOlcp3
    OgCms2Ig2vpOlcp3
    1NiLkiaMwAEf4yOJ
    6seHPcJThOBcEINt

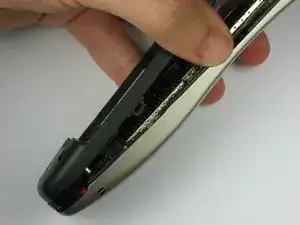

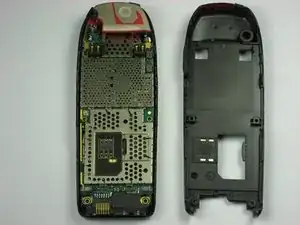

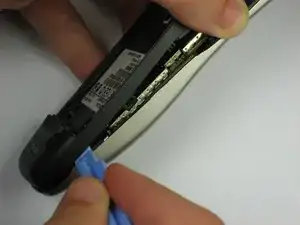

    • Use the plastic opening tool to separate the top part of the backplate.

    • The plastic clips at the top require slightly more force to separate.

  6. Bl5pvKaHAEaVQ6y6
    Bl5pvKaHAEaVQ6y6
    mdaJgVMiByeumAoY

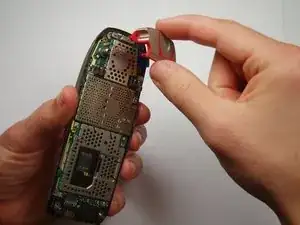

    • Remove the screw holding the antenna to the circuit board.

    • Carefully lift off the antenna from the circuit board.

  7. A2BVKCnLZ2CgnL4Z

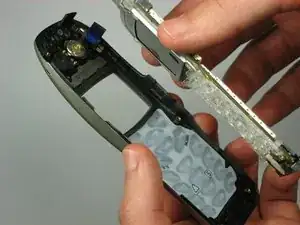

    • Lift off the motherboard from the faceplate.

  8. SLIDpweGrIc6lZJt
    SLIDpweGrIc6lZJt
    sBkK5YBkEg6JLCr6
    4xm35QEjXLmRnUYb

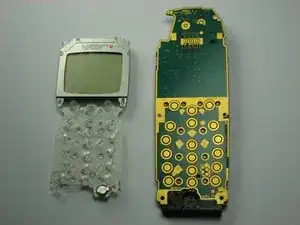

    • Remove the screen from the motherboard by carefully pushing the four tabs around the edge.

    • Carefully pull the screen away from the motherboard.

Abschluss

To reassemble your device, follow these instructions in reverse order.
