Nokia 6350-1b Display Screen Replacement

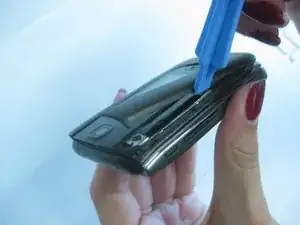

Using a plastic pry, get between the plastic frame and the rest of the phone.

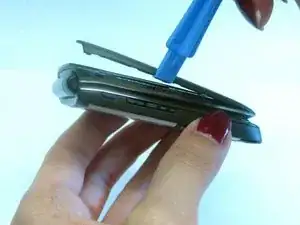

Move the plastic pry along the frame unlocking all of the locks that keep the frame in place.

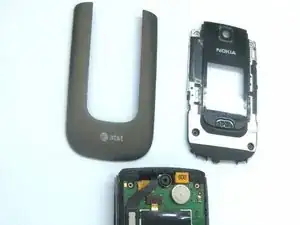

Remove the plastic frame.

Be careful not to pry too hard, doing so could crack the plastic frame.

Using a T-5 screw driver, unscrew the screws on the four corners of the phone.

Using a pry, get between the screen cover and the rest of the phone.

Move along this layer unlocking the various locks that keep it in place.

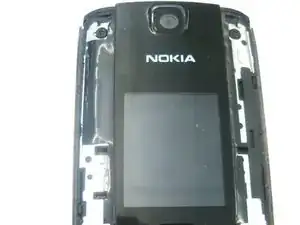

Carefully remove the screen cover to reveal the logic board.

Keep track of the four small screws. They will be needed to put the phone back together.

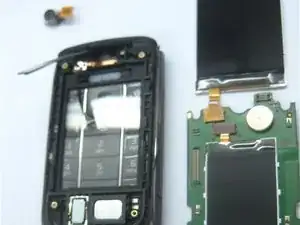

Disconnect the flex cable from the logic board.

Disconnect the LCD display screen.

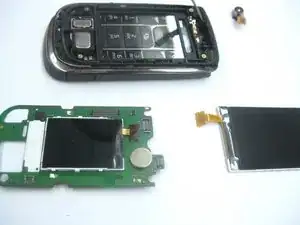

Remove the LCD display screen from the rest of the device.

Connect the new LCD display screen to the phone.

Reconnect the Logic Board to the flex cable.

Using the T-5 screwdriver, screw the four screws back into the phone.

Place the cover back on the device so that it is in the correct position to be reinstalled.

Press gently on the cover so that it snaps back into place.
