Nokia 6555b Logic Board Replacement

Geschrieben von: Josh Forester
  • Kommentare: 0
Nokia 6555b Logic Board Replacement

Schwierigkeitsgrad

Easy

Schritte

6

Zeitaufwand

5 Minuten

Einleitung

  1. mrCgiW11cTb6iTKL
    mrCgiW11cTb6iTKL
    53ULASgWKWYtXBLq
    YvMI1PpKGNiCowuq

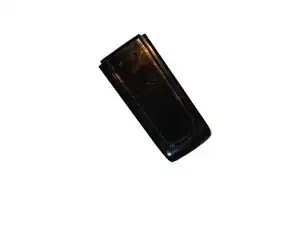

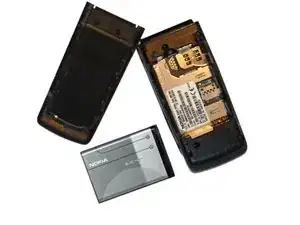

    • Flip phone around and push up on the battery door.

  2. visohHHbZR6A3WuA

    • Remove the 4 T6 screws as shown in red.

  3. lTKER1iwYffDPgdO
    lTKER1iwYffDPgdO
    K5uSkFAxxqJHBctD
    Mr1DJVITlxwsNDHq

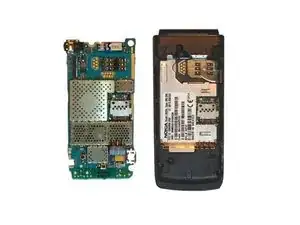

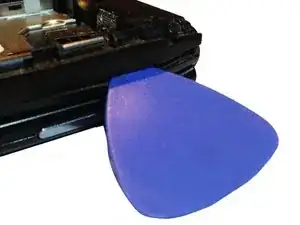

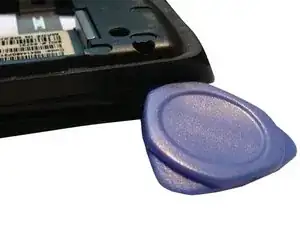

    • Start on one side and work your way to the other side.

  4. OrMivYGJlX1JRmXd
    OrMivYGJlX1JRmXd
    otPtUHIQSKtO6viA

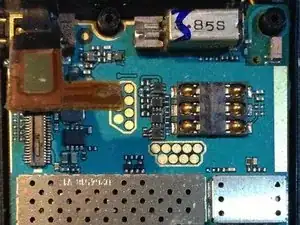

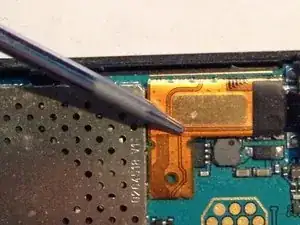

    • Find the LCD flex cable on the top left of the board, and release by prying on the left with a pry tool.

  5. ljQ6pyrqvTmJ5YmW

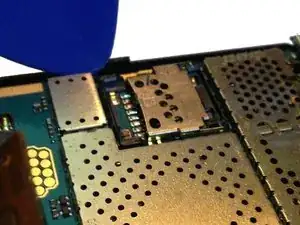

    • Remove the logic board from the mid-housing/front section by prying on one side with a safe pry tool.

  6. lcMQvns1ErefNohy

    • You have now removed the logic board from your Nokia 6555b.

Abschluss

To reassemble your device, follow these instructions in reverse order.
