Nokia 6560 Display Replacement

Geschrieben von: Nathan Whitacre
  • Kommentare: 0
Nokia 6560 Display Replacement

Schwierigkeitsgrad

Moderate

Schritte

9

Zeitaufwand

Keine Schätzung

Einleitung

This guide gives instructions on replacing the Nokia 6560 display.

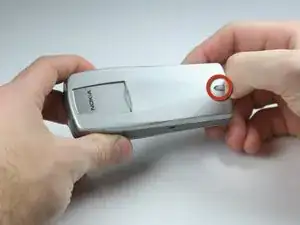

  1. CZ5dxbFREe6QTPiZ
    CZ5dxbFREe6QTPiZ

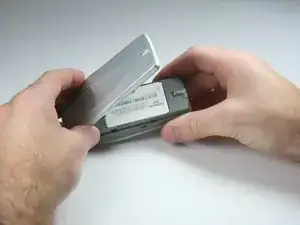

    ITVLqZ3iYuGTsSRS

    • Remove the back cover of your cell phone by pushing the small slider with your fingernail towards the top of the phone.

    • Lift off your cell phone's back cover.

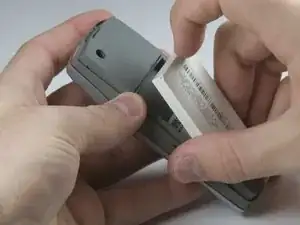

  2. nnvZNjFIirqV3Pfc
    nnvZNjFIirqV3Pfc

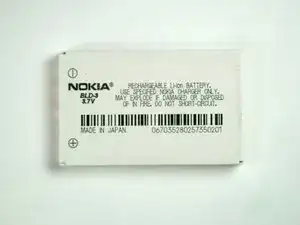

    sGChWr21ThRAN23B

    • Use your index finger to first push down and then lift up the battery as shown.

    • Remove the battery from your cell phone.

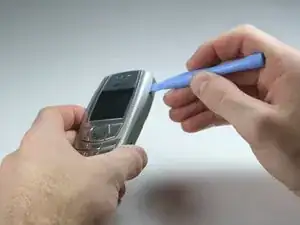

  3. hsOicEcWcYJubSoh
    hsOicEcWcYJubSoh

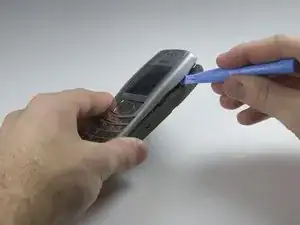

    ErTBwfL5qhPGjr15

    • Open the front cover of your cell phone with the plastic opening tool or finger nail.

    • Lift the cover upwards, starting from the bottom below the keypad.

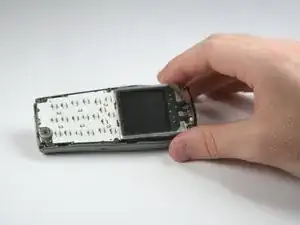

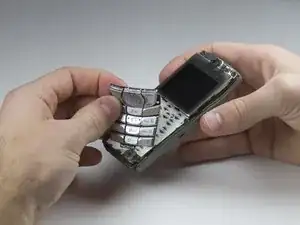

  4. VYcukCkTZhhqXjpn
    VYcukCkTZhhqXjpn
    EIPwhplYFGDXZNNt

    • Lift the keypad off of the keyboard as it is not attached to the phone anymore.

    • If you want to clean your keyboard do not use chemical cleaners or too much water, instead, use a damp cloth.

    • It may be tricky to get the keypad in the right position while closing the front cover for the reassembly. Ensure they are aligned properly before closing the front cover!

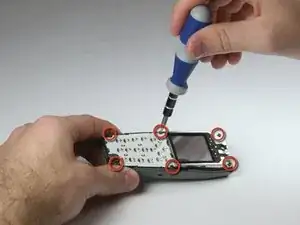

  5. 3n23kZE6nMRYttjU

    • Unscrew the six T6 torx screws which attach the frame to the cell phone case.

    • Be careful not to scratch your display with the screw driver.

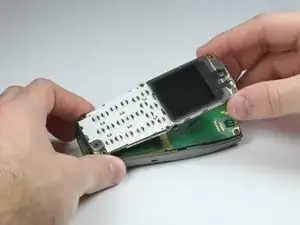

  6. dSPBm3vIHrudD1aB

    • Lift the frame off of your cell phone.

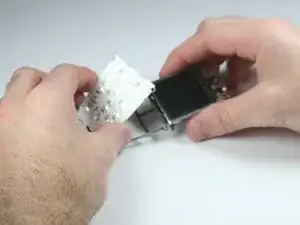

  7. EtGWvcwyCVFRLj6Z

    • Lift the keyboard out of the plastic frame.

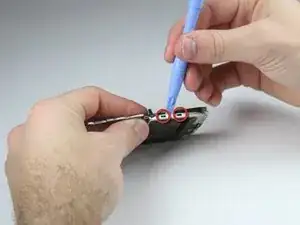

  8. HOMwRuLAYUFTr2jT
    HOMwRuLAYUFTr2jT

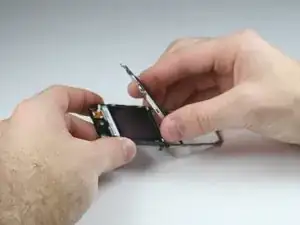

    QdhB1rxSWR4hXkb3

    • Use the plastic opening tool to unmount the thin metal frame at the tab connections. You must do this on both sides.

    • Lift the thin metal frame off of the plastic frame.

    • Pay attention while lifting the frame off because it can easily be bent.

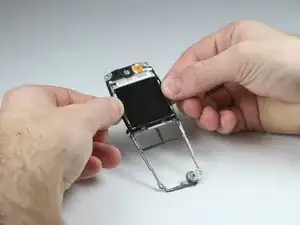

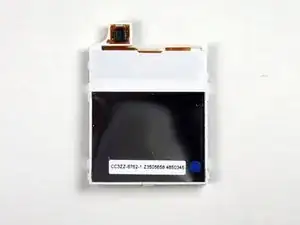

  9. WTWmsPdrIGBKGKOA
    WTWmsPdrIGBKGKOA
    FSpaLIrF3WUX1lHi
    dVOL2vGaHIWAvV3S

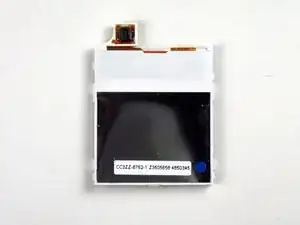

    • Pull the sides of the plastic frame apart in order to loosen the display.

    • Take the display out of the plastic frame.

Abschluss

To reassemble your device, follow these instructions in reverse order.
