Nokia 6590i Logic Board Replacement

Schwierigkeitsgrad

Moderate

Schritte

9

Zeitaufwand

10 - 15 Minuten

Einleitung

This guide will show how to remove the phone's logic board.

  1. PL5bmWPJGIU1cTgT
    PL5bmWPJGIU1cTgT
    sMRLydCeSd2YDWNL

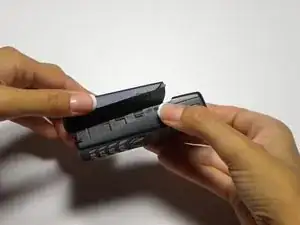

    • Press the button on the bottom of the rear cover.

    • Keep the button pressed while pulling the cover downward to remove the back cover.

    • Lift the cover off.

  2. qlsG3bDnbrNHNfUM

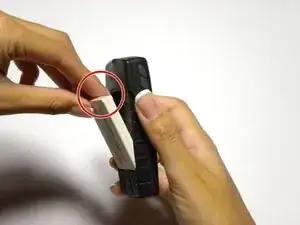

    • To remove the battery, push it down from the top and pull it out.

  3. fDLMdgCBoUKgFsSP

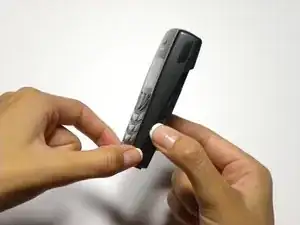

    • Grip the front cover from the bottom.

  4. QnhHLEGMjTLCyZ4R

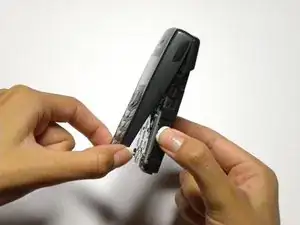

    • Lift the front cover off.

  5. iaUI3oyre5yvqv4c

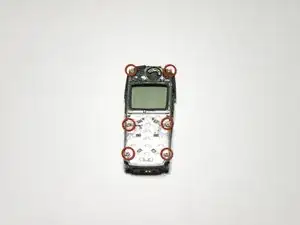

    • Remove the six screws using a T6 torx screwdriver.

  6. JPK6kg3gEgyqYmdM

    • Insert spudger along edge of assembly and gently lift assembly away from case

  7. Ovelo3yQUKEGRsAs

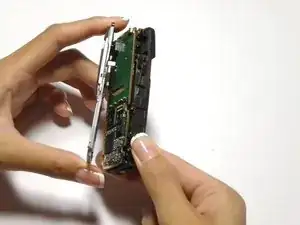

    • Remove assembly from phone

  8. J6QXtHHDeXKMv3Nf

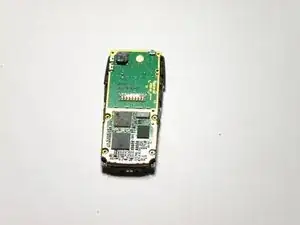

    • The logic board now sits on top of the phone.

  9. G43iBNurRaX26wNG

    • Lift the logic board out of the phone.

Abschluss

To reassemble your device, follow these instructions in reverse order.
