Nokia 6590i Vibrator Replacement

Schwierigkeitsgrad

Moderate

Schritte

14

Zeitaufwand

10 - 15 Minuten

Einleitung

This guide will show you how to remove the phone's vibrator used for the vibrate ring setting

  1. PL5bmWPJGIU1cTgT
    PL5bmWPJGIU1cTgT
    sMRLydCeSd2YDWNL

    • Press the button on the bottom of the rear cover.

    • Keep the button pressed while pulling the cover downward to remove the back cover.

    • Lift the cover off.

  2. qlsG3bDnbrNHNfUM

    • To remove the battery, push it down from the top and pull it out.

  3. fDLMdgCBoUKgFsSP

    • Grip the front cover from the bottom.

  4. QnhHLEGMjTLCyZ4R

    • Lift the front cover off.

  5. iaUI3oyre5yvqv4c

    • Remove the six screws using a T6 torx screwdriver.

  6. JPK6kg3gEgyqYmdM

    • Insert spudger along edge of assembly and gently lift assembly away from case

  7. Ovelo3yQUKEGRsAs

    • Remove assembly from phone

  8. J6QXtHHDeXKMv3Nf

    • The logic board now sits on top of the phone.

  9. G43iBNurRaX26wNG

    • Lift the logic board out of the phone.

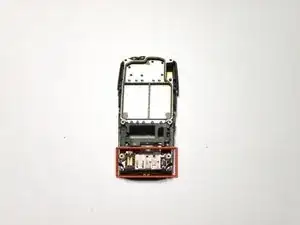

  10. wv2cQkXMKDfRTWXi

    • Locate battery charger connector

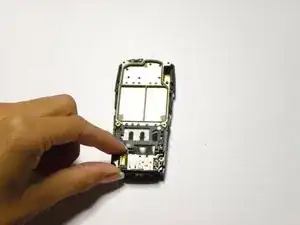

  11. NFpVcTSEAhqbyFfY

    • Grasp top and bottom of battery charger connector on the left side

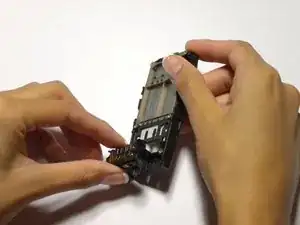

  12. R2MtAhgLBVe2J5JK

    • Lift out the battery charger connector

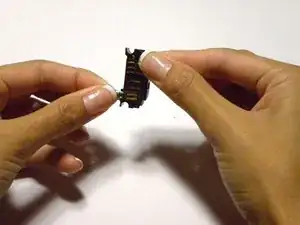

  13. xvfDJNdq43E1RQho

    • Grasp vibrator which protrudes from the battery charger connector

  14. pPKJObff1esrM4Ev

    • Lift the vibrator out of the battery charger connector.

Abschluss

To reassemble your device, follow these instructions in reverse order.
