Nokia 8260 Speaker Replacement

Schwierigkeitsgrad

Easy

Schritte

15

Zeitaufwand

5 Minuten

Einleitung

How to remove the speaker.

  1. Hsc3MAsGj5jirGwB

    • Turn off the cell phone.

  2. wBXCG4JlrCCaGwX3

    • Press down on the round button on the back cover of the phone.

  3. nAtPIbdPKcCeVlZh

    • Slide the back cover down while still pressing the button.

  4. 1ks1bJOwANADbB4L

    • Remove the back cover.

  5. ddAVP1B1DD3rb1xR

    • Press the end of the battery towards the top of the phone.

  6. ooXrmjuVAl4HLLTc

    • Lift the battery outwards while still pressing it upwards till it pops out.

    • You may need to take several attempts to lift out the battery.

  7. ADVi24e1BWjQOydd

    • Squeeze the flat end of the spudger into the crack right under the word "Nokia" on the back of the phone.

    • This step may be a bit difficult if you are removing the antenna for the first time.

  8. uEXyGqxnoQEFTp1y

    • Pry open the antenna door by pulling down the top of the spudger

  9. B2IYJSCOFV4ls1OJ

    • Remove the antenna door.

  10. WMrPKDvqZ3qZGV16

    • If the gold antenna remained stuck to the door, you have finished removing the antenna from the phone.

    • If the gold antenna is still in the phone, carefully remove it and stick it onto the back of the door.

    • Try to keep the antenna as flat as possible. Do not bend it.

  11. PM4o2Q2KulVJ5QQE

    • Remove the five screws with the Torx Screwdriver: two near the bottom, two in the middle, and one under the antenna door.

    • The two bottom screws are longer than the upper three.

  12. aNwMQcooDerHHaJc

    • Remove the back covering.

  13. pqxRkoWKyYUgOd26

    • Remove the two screws at the top.

  14. i1aBowjHOSCRjYPg

    • Remove the metal plating and the circuit board.

    • There is nothing holding the rest of the phone together. Handle the rest of the phone carefully.

    • The LCD will be attached to the circuit board.

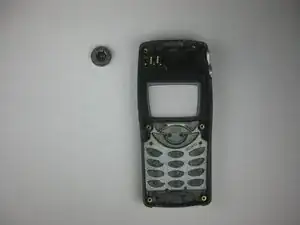

  15. saSn3BUCsjyUE6oD

    • Remove the speaker.

Abschluss

To reassemble your device, follow these instructions in reverse order.
