How to take out and replace the Logic Board for the Nokia 8265 Cell Phone.

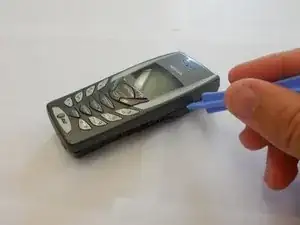

  1. KLaKcGIlq3tppG1Y
    • Start by removing the face plate of the phone with a plastic tool.

    • Once plastic tool is wedged into the side of the phone, twist and leverage the face plate off.

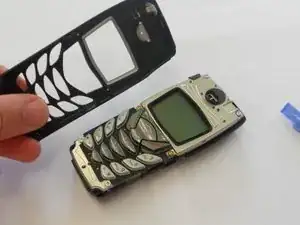

  2. FhCyEFD6WSC2Btmp
    • Once the face plate is off, you will have exposed the keypad.

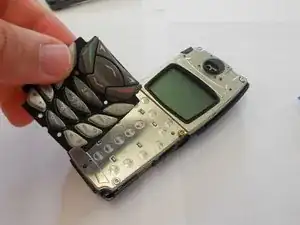

  3. RcAJFOnW45BNJVMQ
    • Simply remove the keypad from on top of the phone, and place it off to the side, leaving just the phone itself remaining

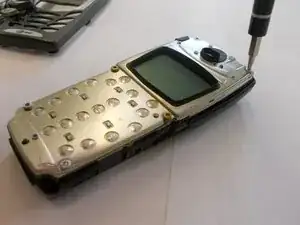

  4. eUsXgKIa1rnYVkso
    • Taking a very small screwdriver, carefully unscrew the six screws attaching the top layer of the screen from the body of the phone.

    • Make sure to remember what screw goes where.

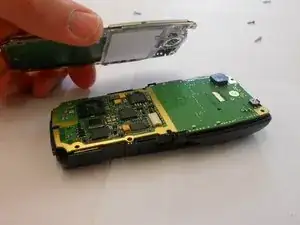

  5. S1lAbxwrFIMYZVgZ
    • Once the six screws are removed, you may take off the screen section of the phone, exposing the inner workings of the cell phone.

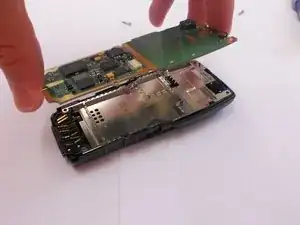

  6. OqGPLgOZCECxYRYp
    • Be careful when removing the Logic Board from the body, lifting it with fingers on both sides.

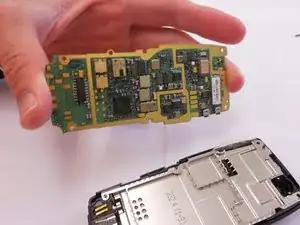

  7. 6IxMRdGKBMTB4TX5
    • Now you can put in your new Logic Board, and reassemble the phone.
