Einleitung
Installing a new antenna may be necessary if you are having trouble sending and receiving calls. Installation should only be done as a last resort, after trying all other possible solutions as listed in the Nokia 8290 Troubleshooting Guide. Installation requires no prior knowledge of mobile phone antennas.
Werkzeuge
-
-
Locate the small button on the top of the phone.
-
Depress the button.
-

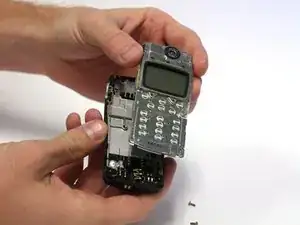

With your other hand, pull the front cover away from the phone.
-
-
-

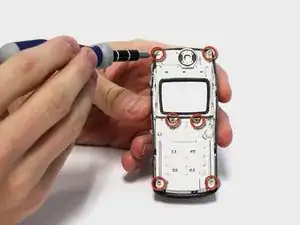

Remove all six 5.3 mm long T6 screws.
-

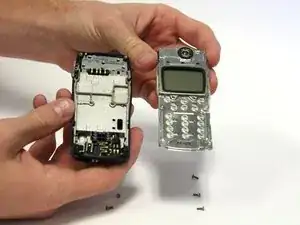

Remove the circuit board/faceplate sub-assembly from the back of the phone.
-
-
-

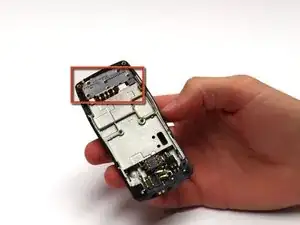

After removing the circuit board/faceplate sub-assembly, locate the antenna.
-
Remove the antenna by prying it out with your fingers or a prying tool. It may help to turn the back portion of the phone over to allow the antenna to fall away.
-
To reassemble your device, follow these instructions in reverse order.
