Nokia Asha 201 Keyboard Replacement

Geschrieben von: Paige Routh
  • Kommentare: 0
Nokia Asha 201 Keyboard Replacement

Schwierigkeitsgrad

Moderate

Schritte

5

Zeitaufwand

Keine Schätzung

Einleitung

Use this guide if you need to replace the keyboard of your Nokia Asha 201.

  1. ZaddAyiALCEOWXl2

    • Remove back cover of device by pressing firmly and sliding the cover off.

  2. YZnOXKt3gIxUhHUu

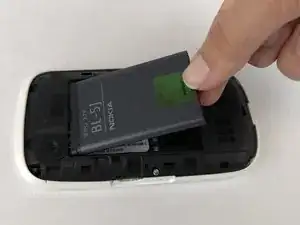

    • Remove the battery.

  3. TSWSHMAWYasoMtbb

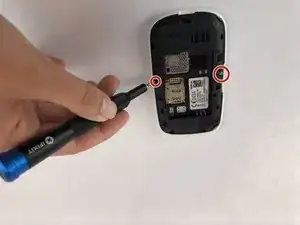

    • Remove the two screws found on the left and right side of the phone.

  4. EnFAZUxSXhJgfNhR

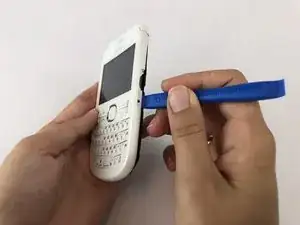

    • Remove the front case using the iFixit opening tool.

  5. HY4MLpbXbWDqRBbf

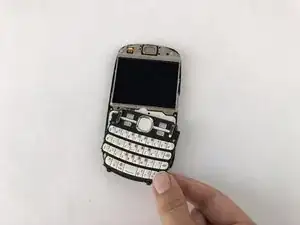

    • Remove the keyboard.

Abschluss

To reassemble your device, follow these instructions in reverse order.
