Nokia Classic 2600c-2b Display Screen Replacement

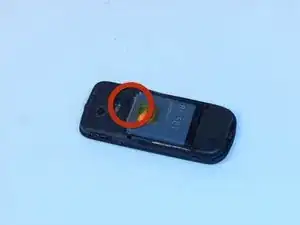

Press down on the button located at the bottom of the phone, using the center ridge as a guide.

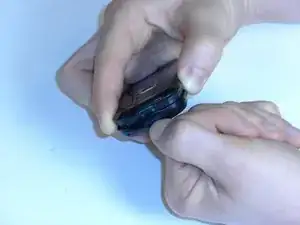

Pull the phone apart from the bottom, keeping the button pressed down.

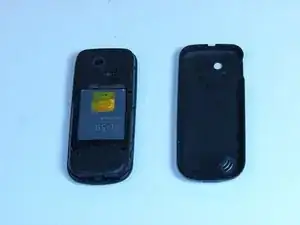

Remove the back cover to expose the battery.

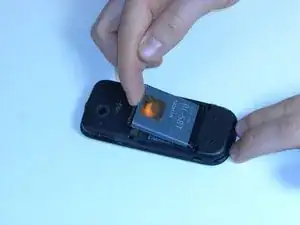

Place a finger or plastic opening tool in the gap between the battery and the phone.

Gently lift the battery out.

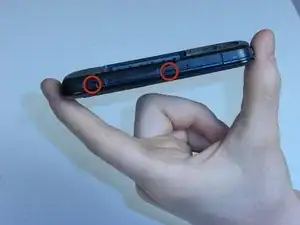

Locate the plastic latches on the left and right sides of the phone.

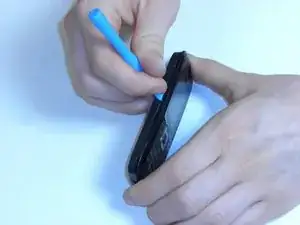

Insert the plastic opening tool or a fingernail into each latch and pry them open individually.

Remove the faceplate with the number pad attached.

Turn the faceplate so the number pad faces downward.

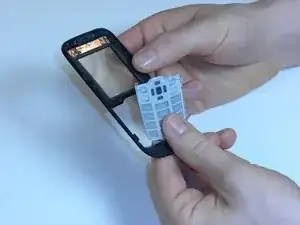

Lift the number pad out of the faceplate.

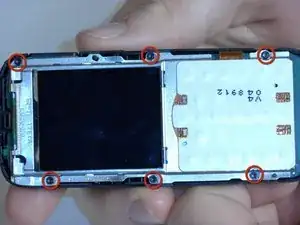

Locate the six screws positions along the edges of the motherboard.

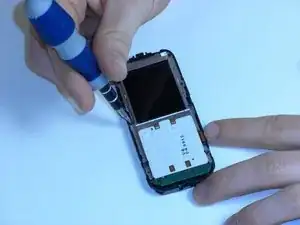

Unscrew the six screws using the Torx 5 screwdriver (see Introduction for description of a Torx 5 screwdriver).

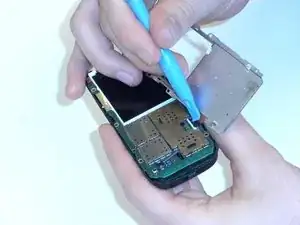

Locate the orange ribbon tape connecting the metal display plate to the motherboard.

Lift the black latch attaching the tape to the motherboard.

Gently pull the tape out of the latch slot to remove the metal display.

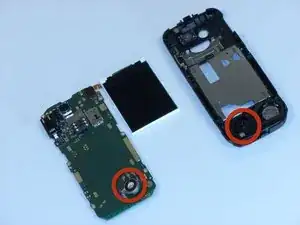

Using the plastic opening tool, gently pry off the motherboard from the plastic shell.

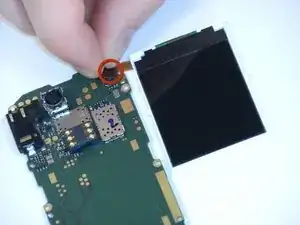

Gently pull the orange ribbon tape up to remove the display.

Replace display screen.

Follow the instructions in reverse order to reassemble the phone.
