Nokia E62 Complete Disassembly

Geschrieben von: Jose Gustavo Abreu Murta
  • Kommentare: 0
Nokia E62 Complete Disassembly

Schwierigkeitsgrad

Moderate

Schritte

21

Zeitaufwand

Keine Schätzung

Einleitung

  1. T6E1rxJZWVGvEk1j

    • To start, press one of the latches at the top of the phone to open the rear cover.

  2. Mv61HUCCrlACtDNP

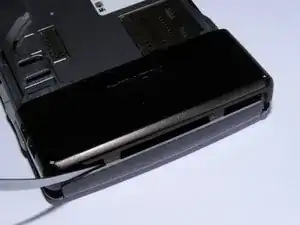

    • Carefully press the other latch.

  3. XjY6UdYYEfJnq1UE

    • Open rear cover by this side.

  4. PGEvwomlNeopatiU

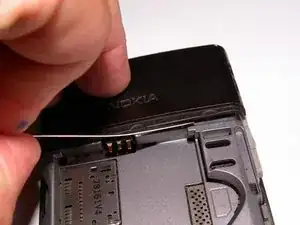

    • Press the three latches to open this side of the cover.

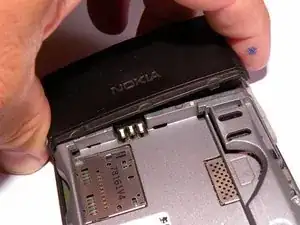

  5. UkRVwILuxU5UqZnE

    • Remove the rear cover.

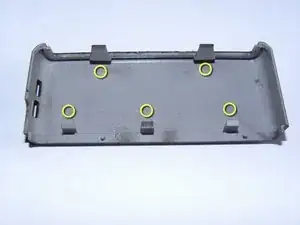

  6. v4g4hBXVdXxgkkOJ

    • Removed rear cover. See the latches .

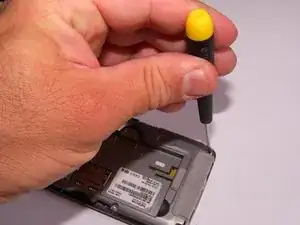

  7. 1FkHEV43RfCDTSoa

    • Remove the screws using Torx T6 screw driver.

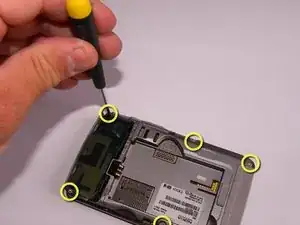

  8. 5HNLbk2eUHB1hReA

    • Remove six T6 screws.

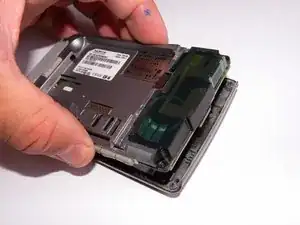

  9. Ku2QLWFT5K1cZDQZ

    • Remove the assembly. The front cover will be released.

  10. BWeDRVUIuUOy1MHt

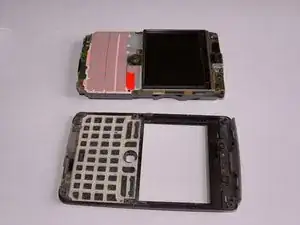

    • The front cover released.

  11. TKHwaXqQXICfhPsG

    • To remove the display , unscrew the T6 Torx at top.

  12. jMaGtbDPoFwofVwq

    • CAUTION! Remove the bottom screw with T5 Torx screw driver, not T6 !

  13. IuwPJEHMMdMfvBkK

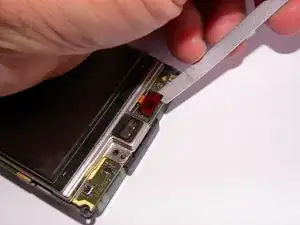

    • Carefully disconnect the Flex cable connector. Then remove the display.

  14. gSgVi2AjyikgImj5

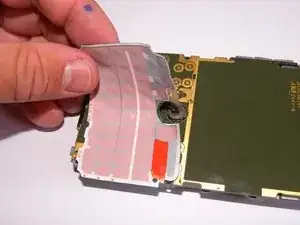

    • Carefully remove the adhesive keyboard membrane.

    • You can replace it at this step if you need to.

  15. NgPLOEHt4u3eWi6w

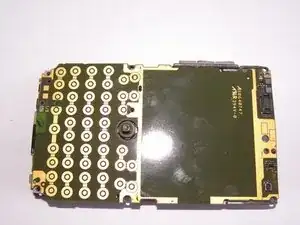

    • You can clean the keyboard surface with alcohol, if you dropped a drink here.

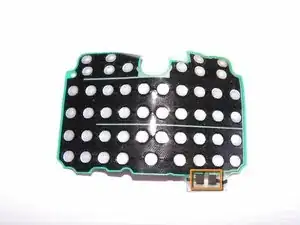

  16. lvGDNQY1BUMyyP4K

    • When you replace the keyboard membrane, align the two contacts at bottom.

  17. KBWkDV2qQ6QflV5B

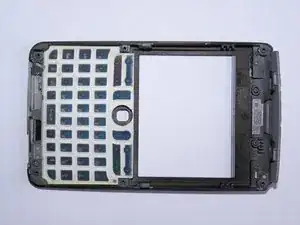

    • You can wash the front cover and keyboard if they are dirty.

  18. kt1BYyYxIS2JZSgM

    • Keyboard - clean it if necessary.

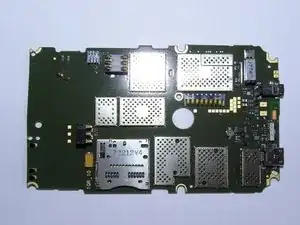

  19. WsZXj44Xec1vvCg1

    • Rear side of the circuit board.

  20. Nb4orUJjMDbb63KN

    • Speaker and antenna contacts.

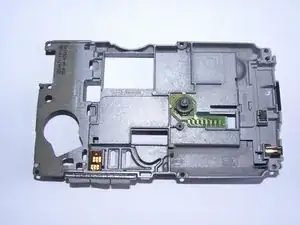

  21. KCdPXIGaMdbvjjiD

    • If necessary, you can replace the joystick, the button module or the connector housing.

Abschluss

To reassemble your device, follow these instructions in reverse order.
