Nokia E71x Camera Replacement

Geschrieben von: Will Goldby
  • Kommentare: 2
Nokia E71x Camera Replacement

Schwierigkeitsgrad

Moderate

Schritte

9

Zeitaufwand

Keine Schätzung

Einleitung

To complete this repair you will need a Torx number 4

  1. DDWKWtu61PwoXwWJ
    DDWKWtu61PwoXwWJ
    VK4WYTkCP35vG32F

    • Remove battery

  2. KkES5CLZueFSFyPF

    • Using Torx number 4 unscrew the four 0.5mm screws.

  3. sYK26qv2UYRwiTp2

    • Push in four clips to detach the body.

  4. qfU6fralrAkUhO55
    qfU6fralrAkUhO55
    1nUqjSjNjIW2Tmp6
    1NCPBFWGeZqgpPBO

    • Separate the body into two pieces.

    • Be careful not to damage the screen or body. Some force will be needed to separate the body.

  5. VsHIYFcEYjHREI2N
    VsHIYFcEYjHREI2N
    jYZBeyZlNI1QMEPN
    KSjcBBreSD3MZLiO

    • Remove the bottom piece that is clipped on.

    • Some force will need to be exerted to remove the clip.

  6. 6JTBTrTOHAw6FOXk

    • Using Torx number 4 unscrew the two 0.7 mm screws at the top of the device.

  7. BGlGjsKnUTCId313
    BGlGjsKnUTCId313
    PuXCC1K5VjfIZNl6

    • Once screws are removed detach back of phone from the motherboard.

    • This will require some force and maneuvering. Be careful not to break phone back or motherboard.

  8. Geqia3UOJj3NcfNe

    • Replace motherboard, ensure that replacement has the same serial number.

  9. NcuYfeBKyUsv4eGO
    NcuYfeBKyUsv4eGO
    VfjE2sWDwaEr5xDY

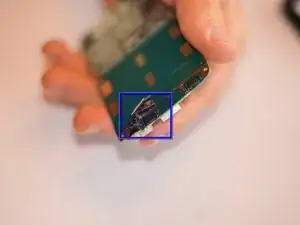

    • Carefully un-clip camera ribbon. Install new camera.

    Product request on the Soldering iron

    lineberryjames6 -

Abschluss

To reassemble your device, follow these instructions in reverse order.
