Removing and replacing the front-facing camera of the Nokia Lumia 1020 requires removal of the screen.
-
-
Use a SIM door key to remove the SIM card and SIM card tray from the device.
-
Use a T4 screwdriver to loosen the captured torx screw to the right of the SIM card tray (the screw will not come out).
-
-
-
Wedge a spudger in between the screen and the back of the device, starting from the top left corner of the phone.
-
Gently pry the screen away from the back of the device using slight upward pressure.
-
Slide the spudger down towards the bottom left corner of the device, continuing to gently pry upwards. The screen will now be slightly separated from the back of the phone.
-
-
-
Wedge a spudger underneath the silver rectangle in the upper right corner until it pops off the back of the phone.
-
-
-
Wedge a spudger underneath the silver rectangle in the lower left corner until it pops off the back of the phone.
-
Completely remove the screen from the back of the phone.
-
-
-

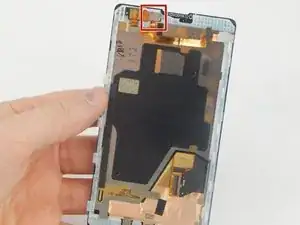

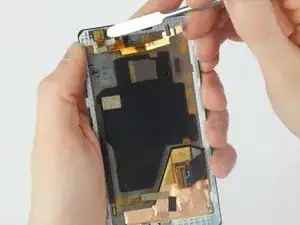

Wedge a spudger underneath front-facing camera on the upper left corner of the screen. Pry upwards until it pops up to the right.
-
-
-

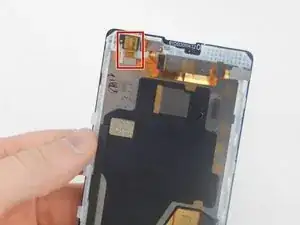

Wedge a spudger underneath the silver rectangle to the right of the front-facing camera. Pry upwards until it pops off.
-
Remove the camera.
-
To reassemble your device, follow these instructions in reverse order.
