Nokia Lumia 2520 Speaker Replacement

Apply heat pad to each side of the device.

Insert the pick between the glass to separate the glass from the device. You can also use the suction cups to help lift the glass.

Pull the ribbon cable out from the connection port on the board.

Move on the step 4 to remove the ribbon connection from the screen.

Use the plastic pry tool to remove both of the connections.

Set aside the screen and the display assembly for repair.

Use a plastic pry tool to remove the battery connector from the logic board.

Remove the ribbon located over the battery.

Theres four screws that attach the battery to the chassis. Use a PH0 Phillips head screwdriver to loosen the screw.

Take a plastic pry to to pry out the battery from its casing.

Using two tool different plastic pry to can help give you leverage on areas that are hard to get up.

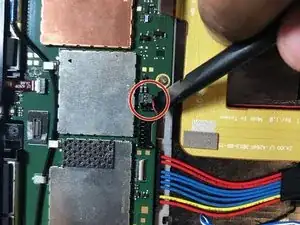

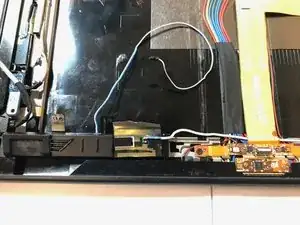

Disconnect the speaker connection.

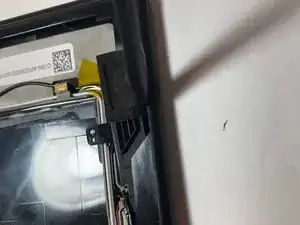

Pry the speaker out of its housing.

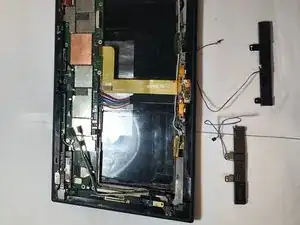

Once done you are complete.
