Nokia Lumia 520 Power/Volume Switch Replacement

Geschrieben von: Eduardo Perez
  • Kommentare: 3
Nokia Lumia 520 Power/Volume Switch Replacement

Schwierigkeitsgrad

Moderate

Schritte

8

Zeitaufwand

8 Minuten

Einleitung

After many attempts of pushing the buttons, and failing to get a response. It may be time to replace your malfunctioning volume and power buttons. This repair guide has qualities required for your particular repair needs for the Nokia 520.

  1. sd6e5XPxHV6a4YAu
    sd6e5XPxHV6a4YAu
    LULXaxWEATm1wl3N

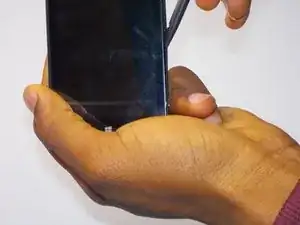

    • Insert the spudger into the crevice located between the back cover of the phone and the body of the phone.

  2. AHDTqAEAMDnYnXEL
    AHDTqAEAMDnYnXEL
    JfnNKE5rf2VYgMCd

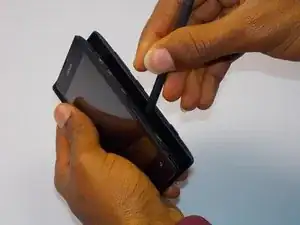

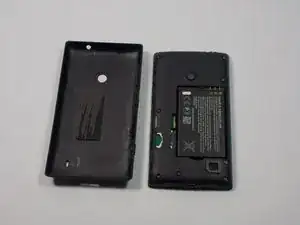

    • Lift the spudger gently to open the back cover of the phone.

    Plastic guitar pick worked really well for me. Easy to insert and slide around to unlatch case.

    anluan -

  3. bDlAA33KFgMTIyIa
    bDlAA33KFgMTIyIa
    5oSl2A4hTlFVsrXk

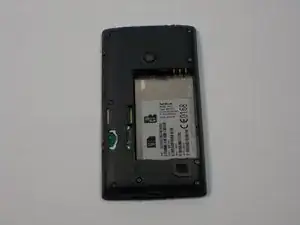

    • Insert the spudger into the space between the batter and the battery holder to remove the battery.

  4. bB6ibcDKaF2XcYfx
    bB6ibcDKaF2XcYfx
    tM5WrAEkHkRsLtYI
    AYPppMwQ2rDgpDB4

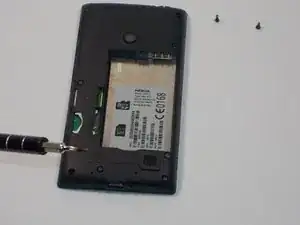

    • Unscrew the 8 screws with a Torx screw driver (T4). After all screws are unscrewed place them next to the phone in the order

    If the screw heads are stripped place a rubber band on the head, press down firmly with screwdriver tip and turn counter-clockwise to remove. Factory puts a drop of threadlock on some of the screws so a little extra force might be required to break screw free.

    anluan -

  5. 2gVpq63m1pdhkA4S
    2gVpq63m1pdhkA4S
    eNn1aPmS1AobGlHF

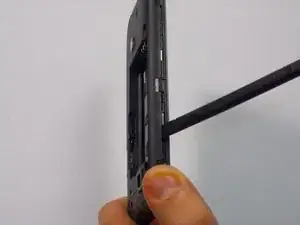

    • Use your spudger to remove the plastic casing over the motherboard. Do it very slowly because it will be tough to remove and you do not want to break it.

  6. d5uARSCR2Tjfe1ZB
    d5uARSCR2Tjfe1ZB
    ZbifwWThjHFbyNHt

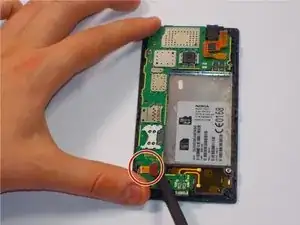

    • Carefully unclip the digitizer touch screen cable and the display screen cable using a spudger.

  7. uPynDVlWAp2nEJhN
    uPynDVlWAp2nEJhN
    KaAsiEnLNndDKNEw

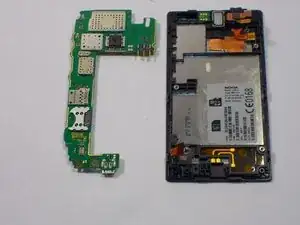

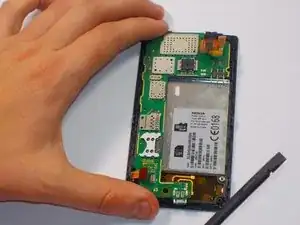

    • Gently remove the motherboard with your hands.

    • Flip it over and turn it 90 degrees to the left so the buttons are in front of you.

    • You will see four small switches close to the side of the circuit board.

  8. Tjw1MoQtAlMBjOAC

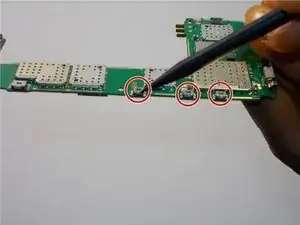

    • Gently take the power/volume switches off using a pair of needle nose pliers. Gently clean the solder that was there. Replace the solder with a new coat of solder.

    • Check out iFixit's soldering guides, here.

    With my phone the switches themselves don't fail. It's the solder connection that breaks. Once re-soldered I put a drop of UV-activated glue behind the switch to prevent it from moving too far when pressed.

    anluan -

Abschluss

To reassemble your device, follow these instructions in reverse order.
