Nokia Lumia 520 Touch screen Glass, LCD Display, Loudspeaker, Earpiece Replacement

Geschrieben von: ZFix
  • Kommentare: 1
Nokia Lumia 520 Touch screen Glass, LCD Display, Loudspeaker, Earpiece Replacement

Schwierigkeitsgrad

Moderate

Schritte

9

Zeitaufwand

20 - 35 Minuten

Einleitung

How to disassemble the phone and change broken digitizer glass, LCD display, earpiece, loudspeaker, etc.


  1. a2h5ELkQnKMSFZMm
    a2h5ELkQnKMSFZMm
    hyJjZOXSvNLdZNvW
    IVV2ycwUyJhV5NAE

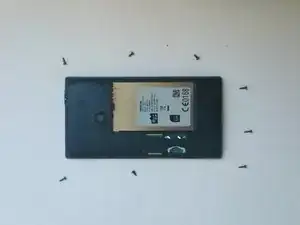

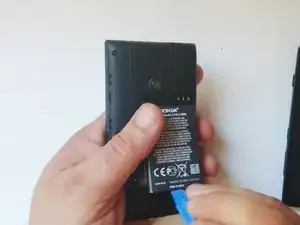

    • Switch off the phone and remove any SIM and memory card.

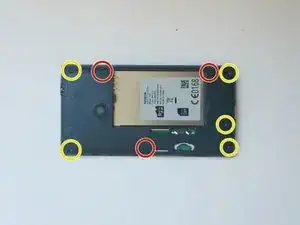

    • There are two tips T4 screws.

  2. vFFXMgNWPpDOJePD
    vFFXMgNWPpDOJePD
    QGZjOcfGIPYflcKx

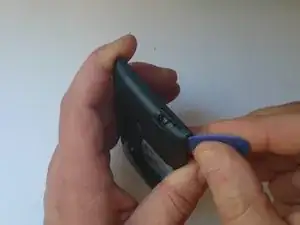

    • Use a plastic tool to separate the back case.

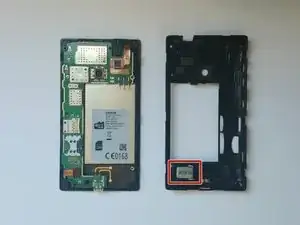

    • Loudspeaker / Ringer

  3. WWR2YdpqIUHBtYmH
    WWR2YdpqIUHBtYmH
    1iXEUMBIT1ZID2gd
    IMRCrQrAgRLKbhst

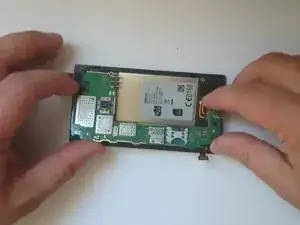

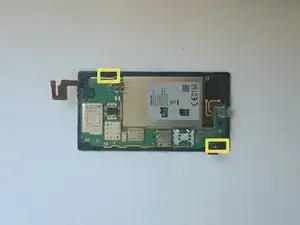

    • Disconnect the Touchscreen and the LCD display flex cables.

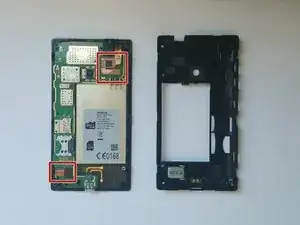

    • The logic board is held by tho locking clips. Use plastic tools to remove it.

  4. CJMSByVsCNBYWGtW

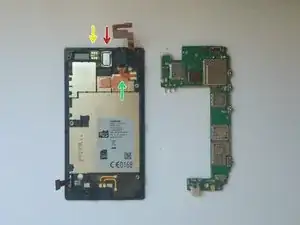

    • Light proximity sensor

    • Earpiece

    • Audio jack connector

  5. pljIXnayL4PeOZby
    pljIXnayL4PeOZby
    ymuIAXQaKLrVO3Me
    lhoLS34ycEoDJfyV

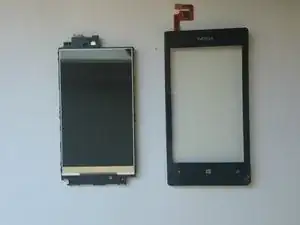

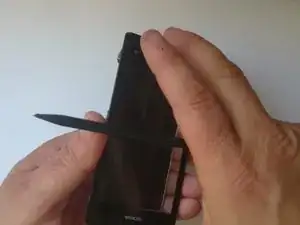

    • Again use a plastic tool to separate the middle frame and the digitizer frame.

  6. 1COHnE2Y5kAF4hjo
    1COHnE2Y5kAF4hjo
    BcRZfIEDNVyiKmGG
    nIBSSUSWBYNY256D

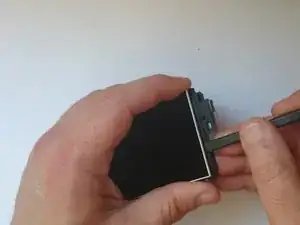

    • This step is for those who wants to change the LCD display.

    • Use a sharp object to pick up a little the display.

    • Then with a spudger or a similar tool separate the display from the frame.

  7. fE5E5jUU3UIYVRWN
    fE5E5jUU3UIYVRWN
    6EMvhHYQApsDoWZI
    XNIUbIkpENe1GMZb

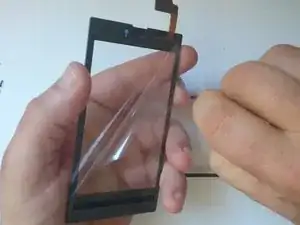

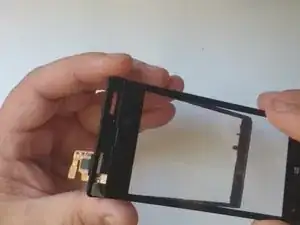

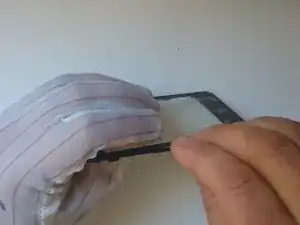

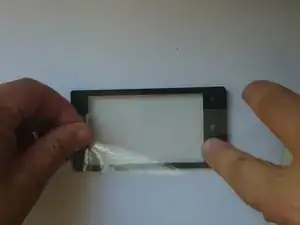

    • Put some transparent tape on the broken glass.

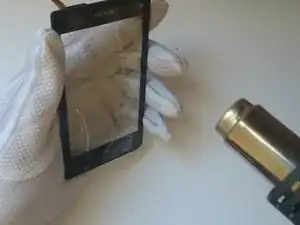

    • Use hot air to warm and soften the old adhesive tape.

    • Start the separating from the middle, where the contact area is small.

  8. AFcmYrHZ4SPiqGjo
    AFcmYrHZ4SPiqGjo
    VTyuPCyhf3PfKsdv
    yQfeCySZ4KH61YAh

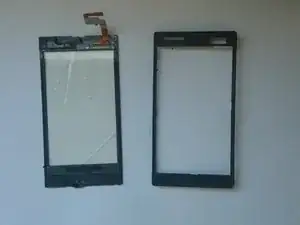

    • Clean the frame

    • Clean the frame from the adhesive tape remnants and install a new one if your replacement part has come without adhesive tape.

    • Install the new touch screen and start with reassembling.

  9. 2AC1ktHIF6aySeTR

    • That's all.

    • .

    • .

    • .

    • .

    • .

    • .

    • Did you do it successfully?

Abschluss

To reassemble your device, follow these instructions in reverse order.
