Einleitung

Follow this guide to repair the glass and frame.

  1. 3aoLPuFjKrDPKPAa
    • Remove the back cover.

  2. SjgZXYPLKajMklIW
    • Remove the battery.

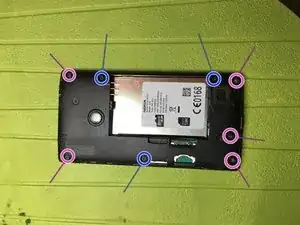

  3. TLmJX3ASffK2PSka
    • Remove 5 long screws, pink arrow

    • Remove 3 short screws, blue arrow

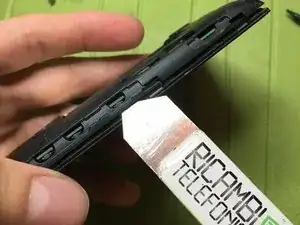

  4. TKaopb2Cyvq2Jr5i
    TKaopb2Cyvq2Jr5i
    ZRIHERkUnEtPU13v
    • With a thin tool, unhook the central body from the back cover, along the entire profile of the phone

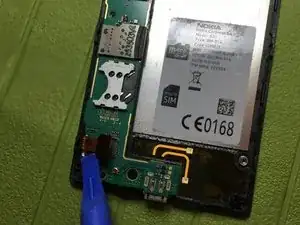

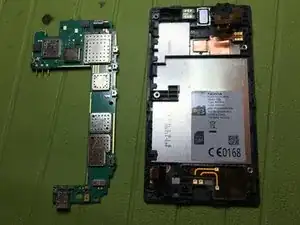

  5. RHZXvPWfs5NKcRKV
    RHZXvPWfs5NKcRKV
    fFRsyo5vocrGnsP4
    ZOnasaJtHj16ySGW
    • Unclip the touchscreen connector

    • Unhook the display connector

    • Unhook the motherboard from the central phone body

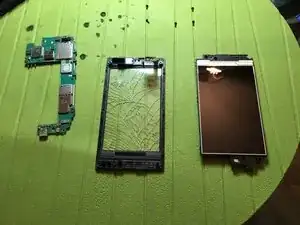

  6. CXoqbA4WXmVwYPHV
    CXoqbA4WXmVwYPHV
    SXhO6WKGia5qOONW
    • Pull up the central frame from the touchscreen assembly by lifting the clips on the perimeter with a thin tool.

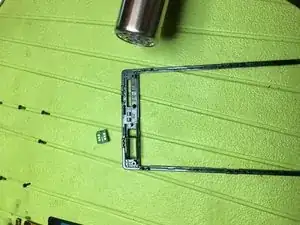

  7. 4TsRNkv2iRmDyrCe
    • Remove the light sensor from the old frame with the help of a heat source.

    • Insert the sensor in the new frame.

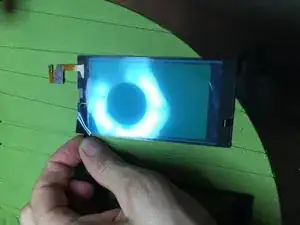

  8. FZ52CkfNIR1ZAVR5
    FZ52CkfNIR1ZAVR5
    BAMGhvuXBJtvC25w
    yXBKMpFMqvflyGV2
    • Remove film that protects double-sided adhesive from the new touchscreen glass

    • Insert flat touchscreen into the frame slot and adhere the double sided adhesive to the frame by placing it in the correct position

Abschluss

To reassemble the device, follow these instructions in reverse order.
