Nokia Lumia 620 LCD Display, Touch screen Glass

Geschrieben von: ZFix
  • Kommentare: 2
Nokia Lumia 620 LCD Display, Touch screen Glass

Schwierigkeitsgrad

Moderate

Schritte

13

Zeitaufwand

20 - 30 Minuten

Einleitung

With this guide we will help you, if you want to disassemble the phone and replace the Digitizer / Glass or the LCD Display. Also this guide is useful for replacing Loudspeaker, Earpiece, Front camera, etc.


Before ordering the new Touch screen check the revision (you can see it on the digitizer flex cable, near to the connector).


__________________________ Video manual: __________________________

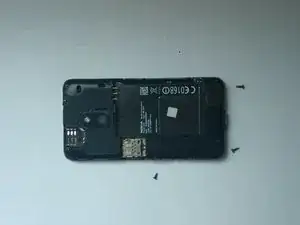

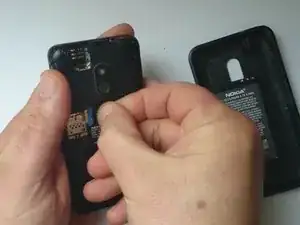

  1. My4VMgZc6Sj6rBWI
    My4VMgZc6Sj6rBWI
    kbYsyQEfEmqZwBNn
    cAMfFcowhukrwBwY

    • Switch off the phone, remove the battery and SIM (Memory) card.

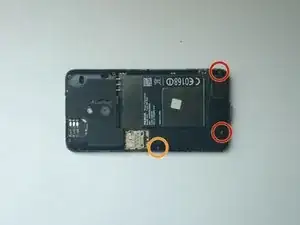

    • The lower back cover is held by 3x T4 Torx screws.

    • The screws are of two types!

  2. piEwqobyYp1nt5RG
    piEwqobyYp1nt5RG
    JUCOI5Xad5AmNQuq

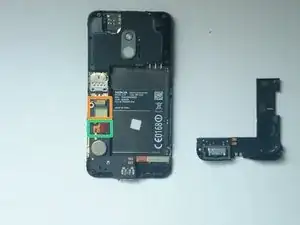

    • Loudspeaker

    • Touch screen flex cable connector

    • LCD Display flex cable connector

  3. 2QWkZeOfXTSrUGJW
    2QWkZeOfXTSrUGJW
    JCAVBCpWor3Ng6jK
    gDHXcUVp5MHF5L5Q

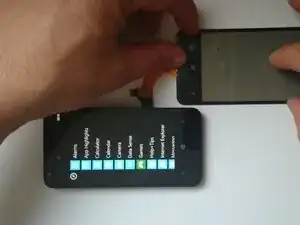

    • If you want to replace the Digitizer, let's test the spare part first.

    • Be careful, don't break the flex cable.

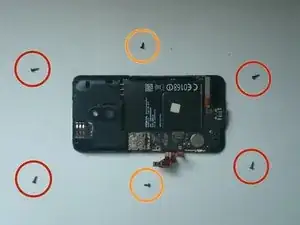

  4. eFOiVSV2IYnKDss6
    eFOiVSV2IYnKDss6
    jRtA5CkFWu2W2HZl
    QC6CthHBpC6ikSae

    • Another three screws hold the Upper Back Cover.

    • Disconnect the Touch screen and the Digitizer flex cables.

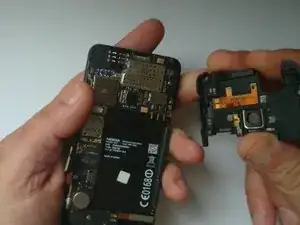

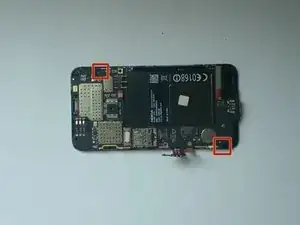

  5. TOkN11wuBBHDuD4S
    TOkN11wuBBHDuD4S
    gtXdtDTZJJAJbh1Y

    • If you have not yet disconnected the Digitizer and the Touch screen flex cables, do it now.

    • The Logic Board is held to the Middle frame by two plastic clips.

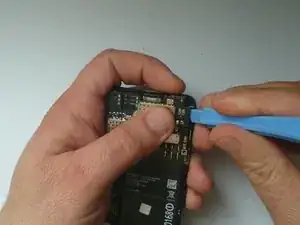

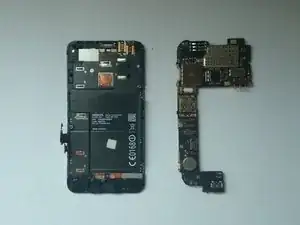

  6. xkmjeNiEEYnjpH21
    xkmjeNiEEYnjpH21
    ooNPuAZjWiBWLt5A
    mxP4BnmWNZRn6FOQ

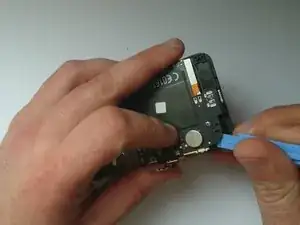

    • With a plastic tool gently release the mother board and remove it.

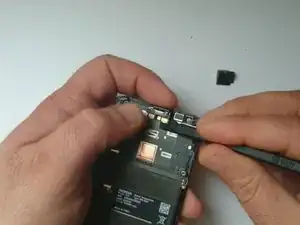

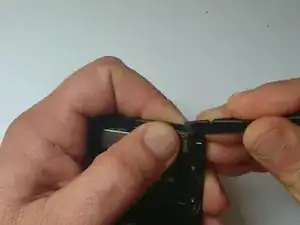

  7. yDnqDiVM5kosOcZU
    yDnqDiVM5kosOcZU
    GmDd6nqFrhpTVMul
    2DyIL135ua3fRJTK

    • Front Camera and Proximity & Light sensor module

    • Earpiece

    • Remove them one by one.

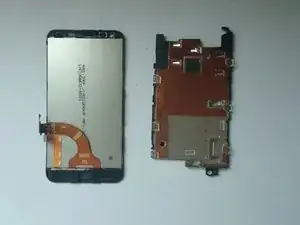

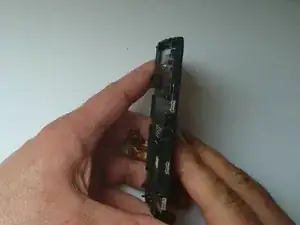

  8. mOuwnXGRlyGoyPrG
    mOuwnXGRlyGoyPrG
    VWVdyXMIXGIBn3We
    YWrA6aygaIysFRab

    • The Midle frame is held by 6x locking clips, three on each side. Release them and remove the Middle frame.

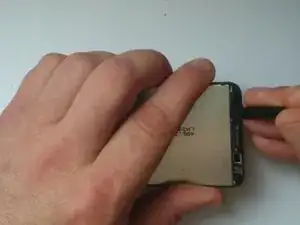

  9. 1aqlG1IhuCUabOYk
    1aqlG1IhuCUabOYk
    NjMYiAmYXeAgjhaF
    u6Ag2422lgI6BmrM

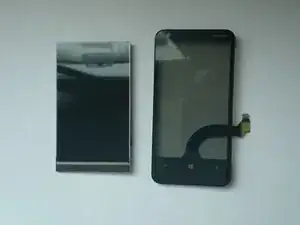

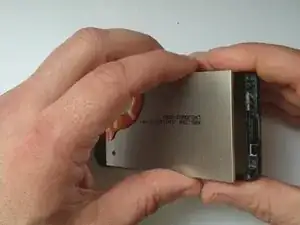

    • Now gently remove the LCD Display.

    • If you have a broken LCD, replace it and reassemble the phone.

    • We will continue with removing the Touch screen Glass.

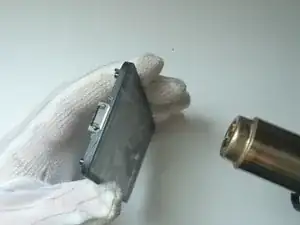

  10. nrSC5LyMGvmAgJ4B
    nrSC5LyMGvmAgJ4B
    VnTKLecie3IgwFKq
    oMrQCPTrNPXuvBaU

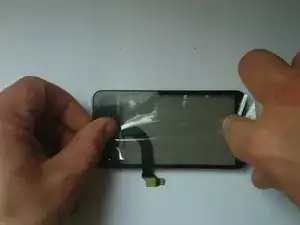

    • Put a scotch tape to prevent the glass from scattering.

    • With a hot air warm the glass to soften the adhesive.

    • You can use a hair dryer for this operation.

    • Start with separating at the middle, where the bonded area is smaller.

  11. GFOligcDQHdqBxYl
    GFOligcDQHdqBxYl
    VkXgrfDsLURYwYaS
    FUvETXMbZhaXyKpV

    • Continue with the separation by using a plastic tool.

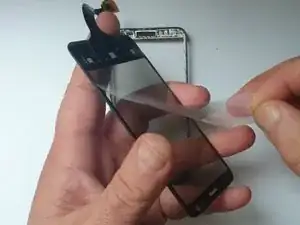

  12. wnRyp2oNGiko14yS
    wnRyp2oNGiko14yS
    OJlIhD2cKKV2iBeq
    k4LolxfQpCMqIiVb

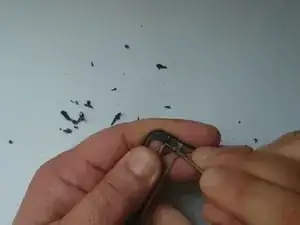

    • Clean the remnants of the old adhesive tape.

    • If the spare parts come without adhesive tape, you must put by himself.

    • Prepare the new digitizer glass and install it.

    • Reassemble the device.

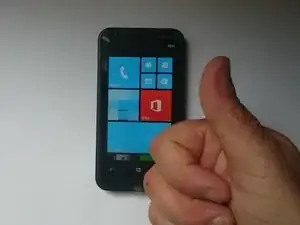

  13. p4Y3Ndx2twoGeU1x

    • That's all.

    • .

    • .

    • .

    • .

    • .

    • .

    • Did you do it successfully?

Abschluss

To reassemble your device, follow these instructions in reverse order.
