Einleitung

Don't forget to turn off the phone first.

When you disconnect the digitizer there is a rev number

it only works with the same rev

for example rev 1.3

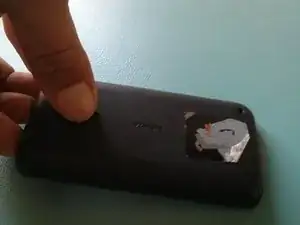

  1. QVZDHvXyaR1CxY5l
    QVZDHvXyaR1CxY5l
    OagHEeixBUmQEtII
    yjYhRwrZZ3p1cG1H

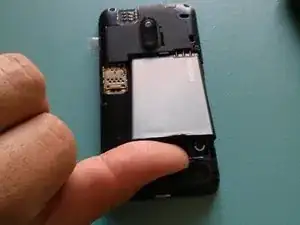

    • Open cover

    • Take out battery

    • Take out the sim card-tray

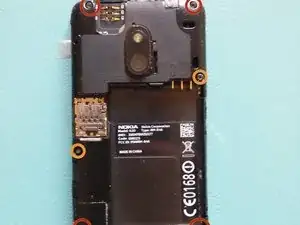

  2. iZaBDsWOk4dSS4ss
    • 4 x t5 screws

    • 2x t5 screws (slightly shorter than the top and bottom scres).

    Just a short note:

    There are two different kinds of those T5 screws in your Lumia.

    Remember that when reassembling your phone!

    lightfox -

  3. XamqGoQ1ira4ZiBY
    XamqGoQ1ira4ZiBY
    n5PLLPrB2qvGBJ2i

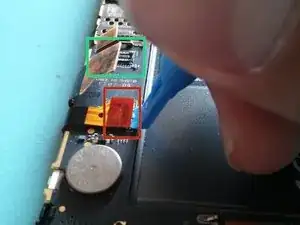

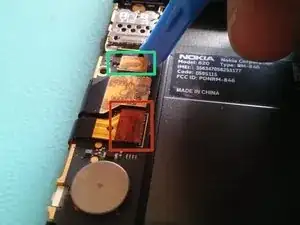

    • Disconnect connectors

    • Digitizer

    • LCD

  4. aS1mC2VlRivCZtmG
    aS1mC2VlRivCZtmG
    nsQ4AThCXo6K41HH
    • Remove main board

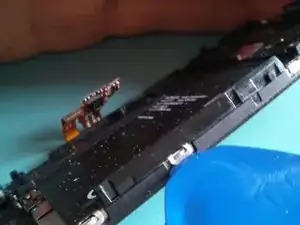

  5. Rt1HhNfLLLinkTeO
    Rt1HhNfLLLinkTeO
    bl1pVUDAsBZLTEMM
    • Open the 6 clips

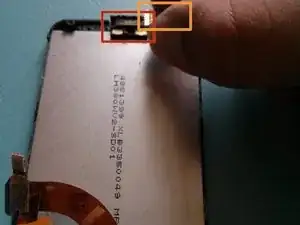

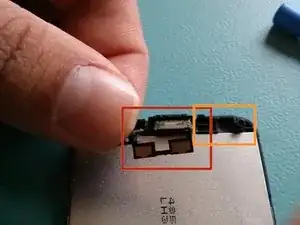

  6. n2qe5BhJJ3Cn1sgm
    n2qe5BhJJ3Cn1sgm
    gcEYGiyZYqja1ZMl
    H2RhHu1F5LYMRLZP
    • Remove

    • Speaker

    • Front camera

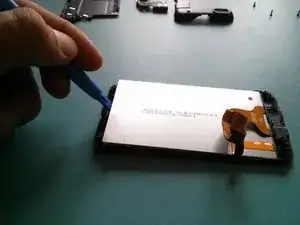

  7. g6JBML3YHJBvM5rx
    • Remove Lcd from digitizer

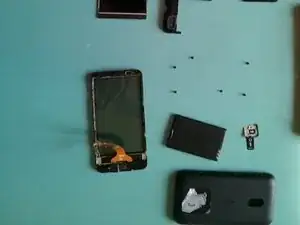

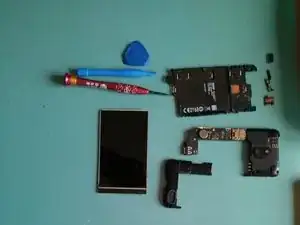

  8. UEmFiMPvmnrZATGR
    UEmFiMPvmnrZATGR
    blibEy24Lchp3oyl
    • You are ready

Abschluss

To reassemble your device, follow these instructions in reverse order.
