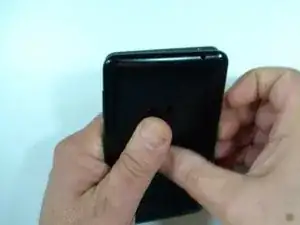

Turn off the phone and remove the back cover.
-
Remove any installed SIM or memory card.
-

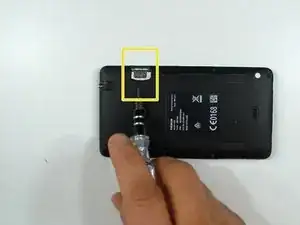

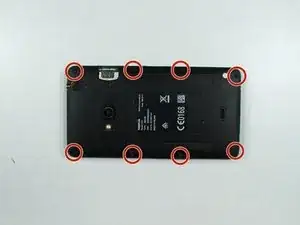

Use a screwdriver Torx T5 and remove the 8x black screws.
-
-
-
At the top and bottom of the phone you'll see two grooves.
-

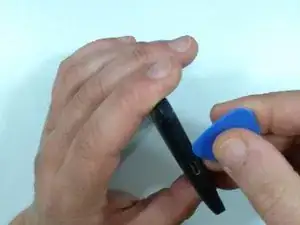

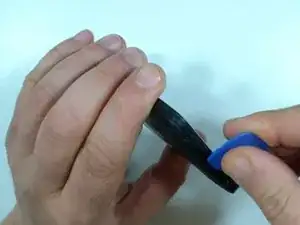

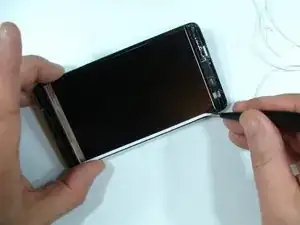

Use a plastic tool and start the separating the rear bezel from here.
-
-
-

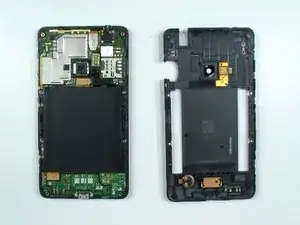

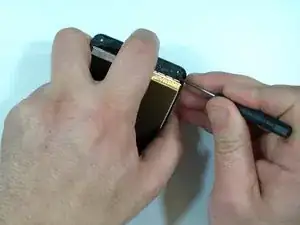

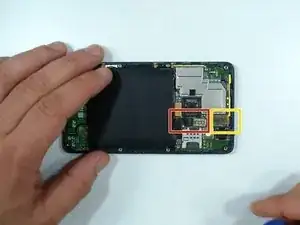

Disconnect the battery and the touch screen flex cables.
-
Now is the moment for test the new spare part.
-

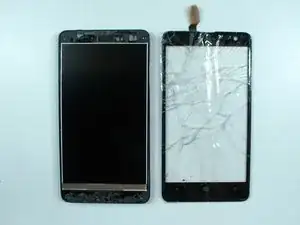

Finally, disconnect the battery again and remove the new touch screen.
-
-
-

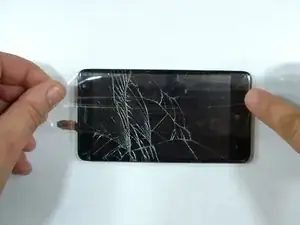

Put some scotch tape to prevent the glass from shattering and yourself from injury.
-

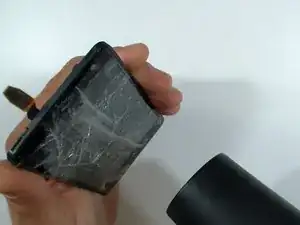

Use a hair dryer and warm the glass to make adhesive soften.
-
-
-

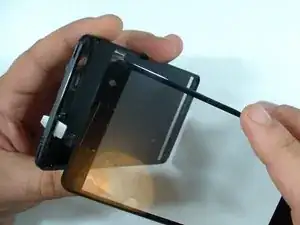

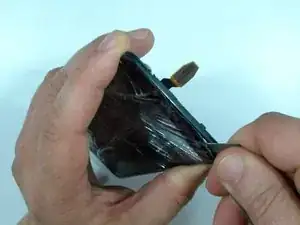

With a cutter separate the glass a little bit to make a room for the plastic pick or other plastic tool.
-
To reassemble your device, follow these instructions in reverse order.
4 Kommentare
Thanks for this guide!
However, the phone uses T5 screws. The T4 screwdriver would simply damage the screws. Just that advice.
Thanks again for such detailed guide.
Another comment: I was attempting to do this guide and the LCD is glued to the digitizer! It's very important to disclose this at the beginning of the guide. You could end up with a broken LCD!
Do not try this if the original glass broke, because it's glued to the LCD and removing the broken glass could damage it.
That is not true carlitossuper1, the LCD and the digitizer are not fised together. Glue is only around the frame.
