Nokia Lumia 635 Display Assembly Replacement

Geschrieben von: ZFix
  • Kommentare: 3
Nokia Lumia 635 Display Assembly Replacement

Schwierigkeitsgrad

Moderate

Schritte

8

Zeitaufwand

30 Minuten

Einleitung

How to disassemble the device and change broken, smashed LCD display and Touch screen digitizer Glass.


  1. 3GPc3YVQW4iGGqZc
    3GPc3YVQW4iGGqZc
    fU6reXpnvqnn45NO
    UP43IxyFEDT6Pk2L

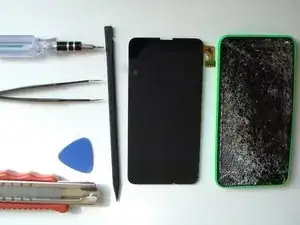

    • Switch off the phone.

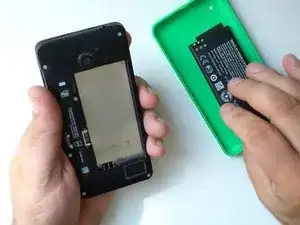

    • Remove the battery and any installed SIM and memory cards.

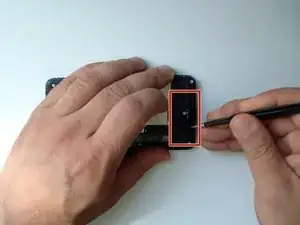

    • Remove the black tape near to the loudspeaker.

  2. YB54jPhFwbpm4b5O
    YB54jPhFwbpm4b5O
    GhKANBCRcDADHsyy
    vGbUgtDWGpJbsnyY

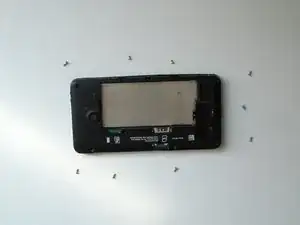

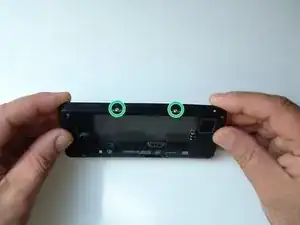

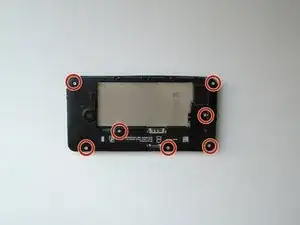

    • Remove the 9x Torx T4 screws.

    • Two of them are with the same head size but with a different length.

  3. VXvKB2LuBQmHHkuu
    VXvKB2LuBQmHHkuu
    kSwLtk4vnB2JAKLA
    IwUXgSotSBIsmlmg

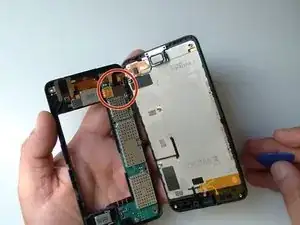

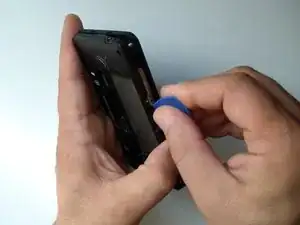

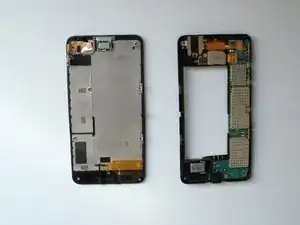

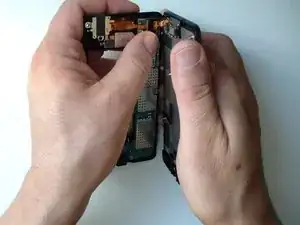

    • Use a plastic opening tool to remove the back cover.

    • Careful unhook the display assembly flex cable.

  4. SXkwIRFLLJlov5Kl
    SXkwIRFLLJlov5Kl
    MvOjgfq6DtwI3vvS
    5RxtSdSewq1Lw25V

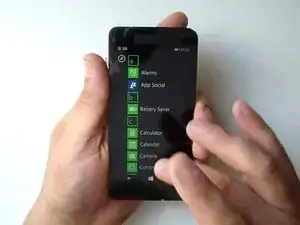

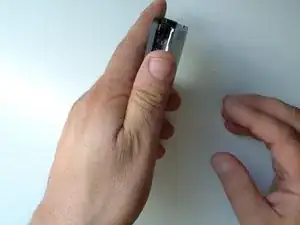

    • Insert wisdom here.

    Not sure if Step 4 'testing' is on the right place. I would assume it's after Step 7 ?

    deRahier -

  5. H3bZZe15TBmrOFs1
    H3bZZe15TBmrOFs1
    oLBYqFFhg3GH3LtW

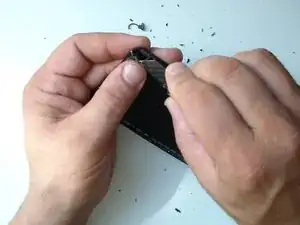

    • Put some scotch tape to prevent the glass from scattering.

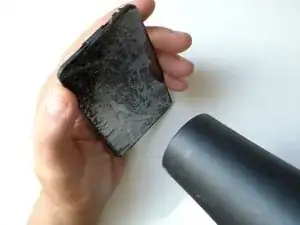

    • Use a hot gun or hair dryer and warm the glass to soften the adhesive.

  6. MC2Dh1v5fC1IVqTq
    MC2Dh1v5fC1IVqTq
    KehUoW1wuoqDTl4N

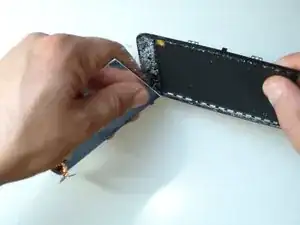

    lQZ1HH1p1TlbEd2Q

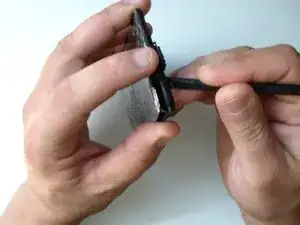

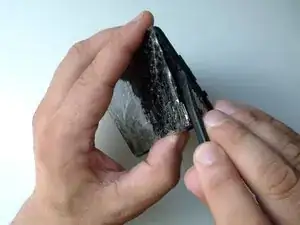

    • Start the separating from the upper right corner, where you have an hole in the middle frame.

    • Use plastic tool to prevent the middle frame from scratches.

    • Work slowly, you can cut your fingers.

  7. aOHOIRiUVN3pEaUP
    aOHOIRiUVN3pEaUP
    RQCBX4AfeFG4EIFH

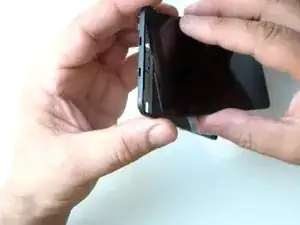

    cKLGHkCtZY4JsotR

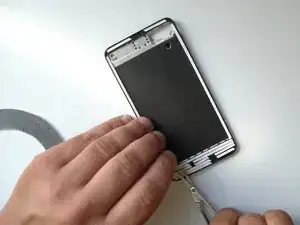

    • Clean the middle farme.

    • Put adhesive tape 3MM.

    • Be careful, don't cover the technological openings on the middle frame (for the light sensor, earpiece, etc.).

    • It's easier if you order the spare part together with an adhesive tape.

    • Install the display assembly.

  8. 2XATnvNCf1aHFK45
    2XATnvNCf1aHFK45
    tBBAkJnXUWB1p6Pw

    • That's all.

    • .

    • .

    • .

    • .

    • .

    • .

    • Did you do it successfully?

Abschluss

To reassemble your device, follow these instructions in reverse order.
