Einleitung
This guide serves the purpose of replacing the Nokia Lumia 635 Mother Board when the user (you) cannot turn on the phone due a burnt Mother Board.
Werkzeuge
-
-

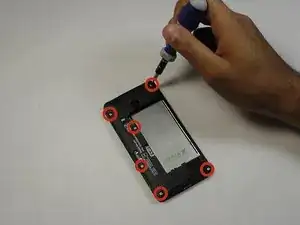

Remove the five screws shown in the photo using the torx Screwdriver 5mm.
-

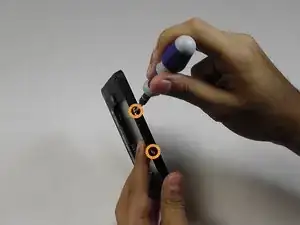

Turn your phone sideways and you will find two more screws that you will need to remove using the Torx Screwdriver 5mm.
-
-
-

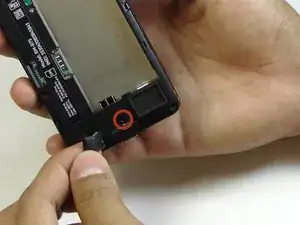

Remove the black sticker on the bottom left side (As shown in the picture).
-
Remove the screw that was under the black sticker using the Torx Screwdriver 5mm.
-
-
-

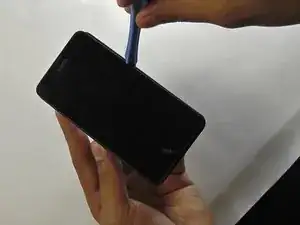

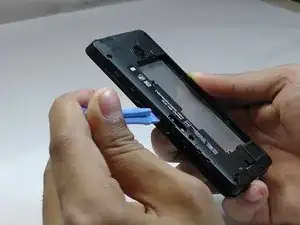

Using the plastic opening tool separate the plastic cover from the screen.
-

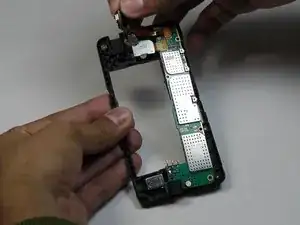

On the top left corner you will see the screens flex cable attached to the mother board, watch out when separating them.
-
-
-

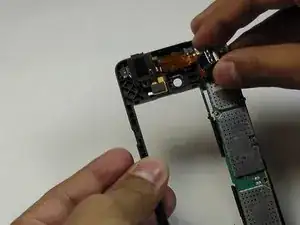

Carefully retrieve the camera and audio jack’s flex that is attached to the mother board as shown in the picture.
-

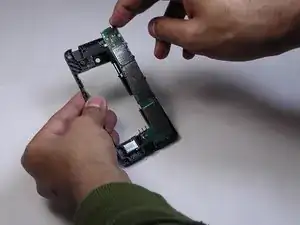

Retrieve the burnt Mother Board and replace it with the new one.
-
To reassemble your device, follow these instructions in reverse order.
