Nokia Lumia 720 Main and Front Cameras Replacement

Remove the SIM card tray and the memory card try.

Use a screwdriver Torx T2 and remove the screw under the SIM card tray.

Use plastic tools and start the separating the back cover from the top side.

Remove the 3x Torx T4 screws.

Buzzer / Loudspeacker

Disconnect the battery flex cable.

Unstick the metal foil from the logic board.

Use a plastic tool with a thin tip and unstuck the battery from the middle frame.

Battery - BP-4GWA, 2000mAh, 3.7V, 7.4Vh

Disconnect the Antenna cable from the Logic board and from the Charging Dock board and remove it.

Disconnect the Volume, Power and camera buttons flex cable.

Remove the 4x Torx T4 screws.

Slightly lift the board

Disconnect the Display Assembly flex cable.

Disconnect the Charging Dock Board flex cable.

Remove the Main board.

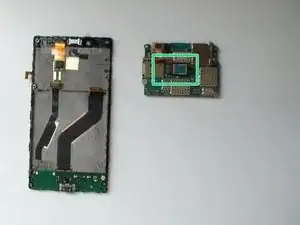

Front Camera with a proximity light sensor.

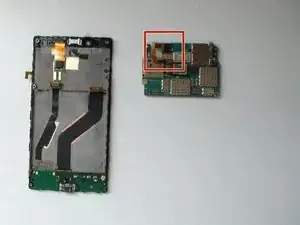

Main / Rear Camera.
