Einleitung

If your camera on your Nokia Lumia 830 isn't taking photos or if a lens in your camera is cracked, scratched or broken, you may need to replace your camera. This is a step-by-step guide instructing you how to do so.

  1. HXXwKg5v34HuMmwX
    HXXwKg5v34HuMmwX
    DakdIXgvU6YB4Gtr
    • Place the phone with the screen facing down.

    • Remove the back cover by placing your fingernail or plastic opening tool under the slotted indent at the bottom of the phone.

  2. RgGUXvyUpcnABPZ4
    RgGUXvyUpcnABPZ4
    t6wxMZ1OubpZbYEi
    6DDNdoQF2JtLCBFk
    • Carefully remove the battery by placing the plastic opening tool underneath the indent at the bottom of the battery, and pry it up.

    • There may be adhesive underneath the battery to keep it in place, this may make it a bit difficult to remove the battery.

  3. PSJiWsSv4MBSXL5E
    PSJiWsSv4MBSXL5E
    CBE1LfDTLHYx2Fdy
    • Remove the black strips on both sides of the battery compartment.

  4. KPFTHRoYbhxbRlxL
    KPFTHRoYbhxbRlxL
    FXpThOVEuLyIFNvd
    • Remove the two 3.9mm silver screws from the bottom corner of the phone. Then remove the five 2.5mm black screws from top to bottom of the phone.

    • All of the screws take a t5 star screwdriver.

  5. Yo6lBJqi2TW6TXgA
    Yo6lBJqi2TW6TXgA
    ev4oNNArW3JtWDyl
    cQncAJAeFVKV1Tny
    • Use the plastic opening tool to push into the slots holding the backing in place.

    • All five slots are along the inner wall of the battery compartment. Push the slots on the sides first before pushing the slot on the top.

    • Remove the backing from the frame, making sure to lift the bottom portion away from the phone, to allow the top to slide out of place.

  6. xF3PIEfyoug6ON5O
    • Lift the speaker out of the phone. You may need to wiggle the speaker loose.

  7. sWTtyhJRSUa6oLLG
    sWTtyhJRSUa6oLLG
    31sx6qshxYdRinPq
    Z641THHNwmSkbSRm
    • Hold the phone in place and grab the metal end of the RF cable with the precise tweezers.

    • The RF cable is the long, skinny cable that runs down the side of the phone

    • Be sure to pull the cord up gently, so it is not damaged.

  8. ajsBKAyU24e525xb
    ajsBKAyU24e525xb
    jNcFBW2TUjDk1RAT
    2mRLlChZA2yv4mkL
    • *Optional* Remove the copper tape at the top right corner of the phone with the precise tweezers.

    • Scoop one end of the tweezers underneath the skinny part of the tape and peel up.

    • This tape is not stuck in any way with the vibrator motor. It will lift with the motherboard. Removal is not necessary

    Where can I get a new copper tape like that, as this one can't be reused?

    Miha Ofak -

  9. dy2MWfEGnNC6D2hQ
    dy2MWfEGnNC6D2hQ
    MgdZdmXfOhnTWv6S
    B4pjVVqoTwGwiEYF
    • There are five flex connectors located on the motherboard. They look like rectangular metal boxes with a thin strip connected to them.

    • Unclip the connectors from the motherboard using the plastic opening tool. Lightly press the wedge end of the tool to the opposite site of the connector with the strip attached to it, and pry it up.

    • Place the plastic opening tool underneath the motherboard near where the three prongs stick out of the bottom and push the motherboard up to remove it.

  10. rufWQofradXNW5Si
    rufWQofradXNW5Si
    DjPwBeWC5tgLNUcU

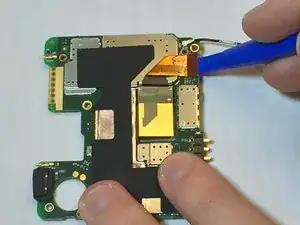

    • After you've removed the motherboard, locate the camera connector at the bottom right hand corner of the motherboard, as shown in the image.

    • Gently use the plastic opening tool to lift the connectors, disconnecting the camera from the motherboard.

    • Lastly, use tweezers to remove completely.

Abschluss

To reassemble your device, follow these instructions in reverse order.
