Nokia Lumia 900 Battery Replacement

Geschrieben von: Joshua Crosman
  • Kommentare: 1
Nokia Lumia 900 Battery Replacement

Schwierigkeitsgrad

Easy

Schritte

4

Zeitaufwand

5 - 10 Minuten

Einleitung

  1. 2BWXFXdWESg4jZiI
    2BWXFXdWESg4jZiI
    AtJPibcEDXZnjJ63

    • Remove the Sim card tray and locking bar, before applying pressure to to the top right corner of the plastic casing.

    • Using the opening tool, pry the screen from the casing until they are separated from each other.

    This guide is forgetting to mention you have to take out the Sim card tray and the locking bar that holds the LCD in, if you don't you will break the housing and screen.

    Matthew Babcock -

  2. wYIwk1DP1yOGVEbd

    • Detach connector A from the phone.

    • Use the opening tool to pry out battery from the phone.

    • The battery should come out fairly easily

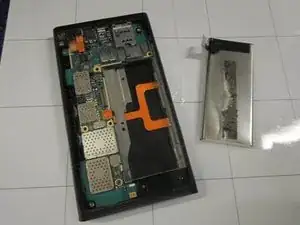

  3. sM5ZHZNDjKo3QYBd

    • Place the battery in the empty battery slot

    • Attach connector A to the battery terminal.

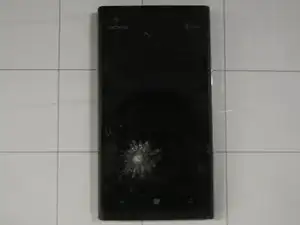

  4. 521sMQQYMTyD4xJe

    • Slide the hinges of the left side of the screen under the left side of the plastic case

    • Clamp the right side of the screen down and make sure screen is flat

    • The screen should "click" into place
