Nokia Lumia 900 Front Camera Replacement

Geschrieben von: Joshua Crosman
  • Kommentare: 2
Nokia Lumia 900 Front Camera Replacement

Schwierigkeitsgrad

Moderate

Schritte

5

Zeitaufwand

10 - 15 Minuten

Einleitung

  1. 2BWXFXdWESg4jZiI
    2BWXFXdWESg4jZiI
    AtJPibcEDXZnjJ63

    • Remove the Sim card tray and locking bar, before applying pressure to to the top right corner of the plastic casing.

    • Using the opening tool, pry the screen from the casing until they are separated from each other.

    This guide is forgetting to mention you have to take out the Sim card tray and the locking bar that holds the LCD in, if you don't you will break the housing and screen.

    Matthew Babcock -

  2. bnAgilZHpCHJrrwc

    • Detach camera ribbon from motherboard

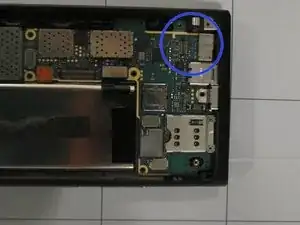

  3. 2opKmRTQFMwve6Ah

    • Peel camera off of adhesive surface

    • Use caution when removing camera as it is fragile

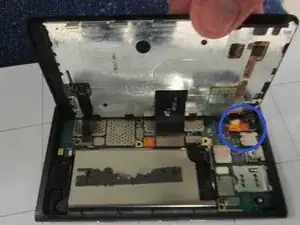

  4. HMQajZY1D4adXJNF

    • Apply adhesive to back of camera

    • Attach ribbon to motherboard

    • Press down on camera for 60 seconds

    • Let dry for 5 minutes

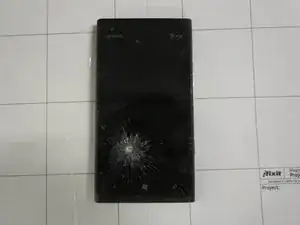

  5. PrpKk6iLQQbqjpkq

    • Slide the hinges of the left side of the screen under the left side of the plastic case

    • Clamp the right side of the screen down and make sure screen is flat

    • The screen should "click" into place

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Joshua Crosman

Mitglied seit: 20/10/14

304 Reputation

Ein Kommentar

Is also forgot to tell about the plate between screen and battery that is glued to the battery

John Bork -
