Nokia Lumia 900 Motherboard Replacement

Geschrieben von: Joshua Crosman
  • Kommentare: 1
Nokia Lumia 900 Motherboard Replacement

Schwierigkeitsgrad

Moderate

Schritte

5

Zeitaufwand

15 - 20 Minuten

Einleitung

  1. 2BWXFXdWESg4jZiI
    2BWXFXdWESg4jZiI
    AtJPibcEDXZnjJ63

    • Remove the Sim card tray and locking bar, before applying pressure to to the top right corner of the plastic casing.

    • Using the opening tool, pry the screen from the casing until they are separated from each other.

    This guide is forgetting to mention you have to take out the Sim card tray and the locking bar that holds the LCD in, if you don't you will break the housing and screen.

    Matthew Babcock -

  2. yccCPq1SW3mX6ltx

    • Detach connector from the phone.

    • Use the opening tool to pry out battery from the phone.

    • The battery should come out fairly easily

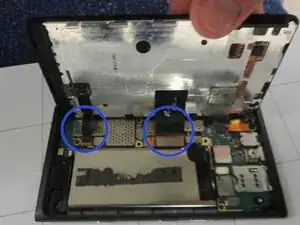

  3. rjSFyNSJVRdmcyQy

    • Detach Connectors that are attached from the screen to the motherboard.

    • Screen can now be removed with little effort.

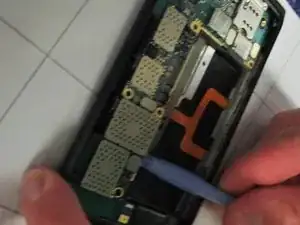

  4. AKjStmpDrqpy44Mb

    • Using a pair of tweezers, remove rubber gaskets that are holding the motherboard in place.

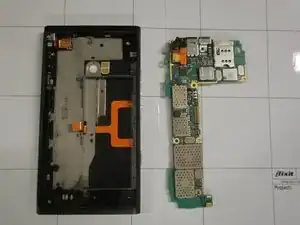

  5. YwXMm3g5Rvxk5FLf

    • Starting in the bottom left corner of the device, insert a wedge between the motherboard and the case.

    • Gently pull up with the wedge allowing for the motherboard to gently click out of place.

    • Gradually repeat this process around the entire motherboard until it becomes easy enough to remove completley from the casing.

Abschluss

To reassemble your device, follow these instructions in reverse order.
