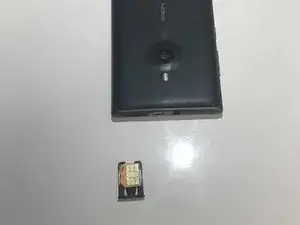

Einleitung

  1. D2K1cjSxhWotJkQA
    D2K1cjSxhWotJkQA
    UHQytq1YNk6WlXPT

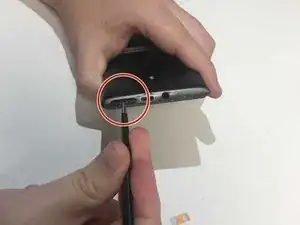

    • Remove the sim card holder by inserting tweezers into the hole. Push down and the holder will spring back up.

    • Pull out the holder until it is completely separate.

    • Something like a paperclip will work if there are no tweezers available.

  2. P4BchHIZe13JHBO5
    P4BchHIZe13JHBO5
    hZnMDGlVYYclFfyO
    FwTZNAFDBPmQSnbR

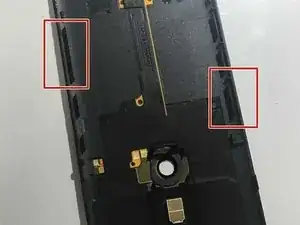

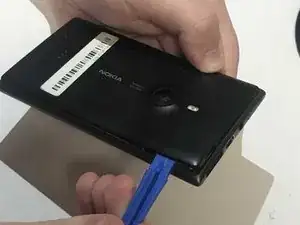

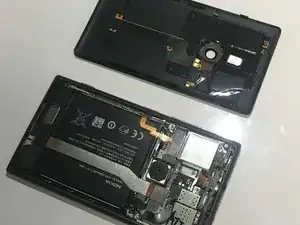

    • Slide a plastic opening tool under the back cover.

    • Slide the tool around the outsides of the cover to fully dislodge the pins holding the cover to the phone.

    • Some pins are facing the opposite way from the others.

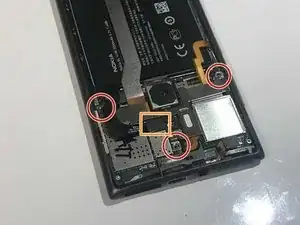

  3. M1EEZw6dMPQLiux1
    M1EEZw6dMPQLiux1
    Km1nFSwCWbW5TBAn
    ZMWk2RGfhrOlogaw

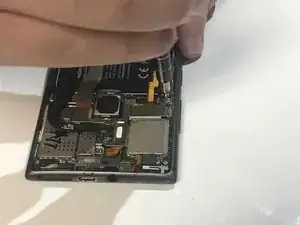

    • Remove the 3 screws using the T7 Torx screwdriver.

    • Unclip the black tab connector.

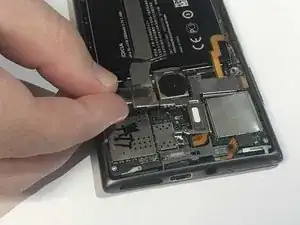

  4. Egu3jH5lGZRSJmGf
    Egu3jH5lGZRSJmGf
    nEJigTa64fctlWvd

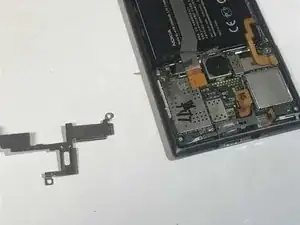

    • Remove the silver metal cover.

    • Be careful of the tape under the right square side of the panel. Using a spudger helps.

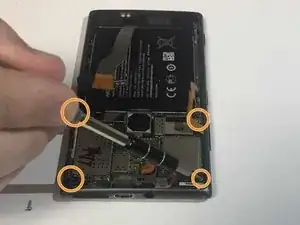

  5. qnfdrSiUgD6DLbEj
    qnfdrSiUgD6DLbEj
    XaXpTk5NYVURahQY
    HxHpgmgwhYiiUgVn

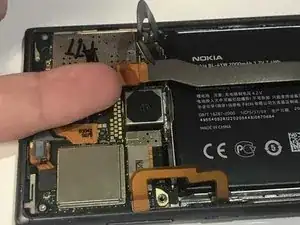

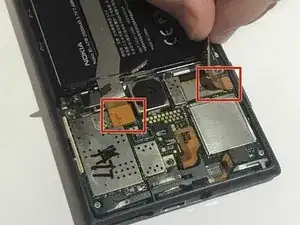

    • Unclip the two orange tabs.

    • Remove the four silver screws using the T5 Torx screwdriver.

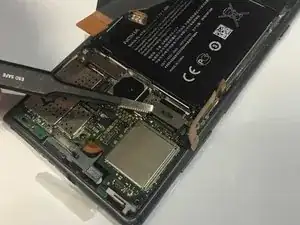

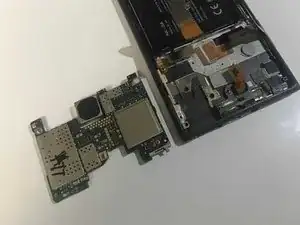

  6. TnOJkkotCZNGsR6a
    TnOJkkotCZNGsR6a
    5VmyrsGQ1tUvdwek
    • Remove the motherboard by sliding tweezers between it and the back of the screen. Lift up.

  7. fGDMRZFeXC5gDdtE
    fGDMRZFeXC5gDdtE
    IgpXaCHtZhpnAUd3

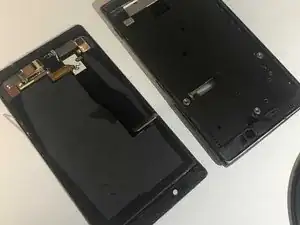

    • Push the screen from the inside of the phone.

    • Pull the screen off.

    • Slide the electronic strip through the small opening.

  8. lGn4I2yYnTSYuFi3
    • Locate the grey speaker/camera cover.

    • Carefully remove the cover with either a pair of tweezers or your fingers.

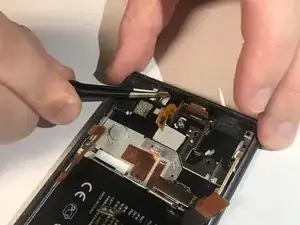

  9. UoBsA6INLXoAd62h
    UoBsA6INLXoAd62h
    4yRvRnXVQHHxjFxT
    ZOZrj1FkCHZIkUT5

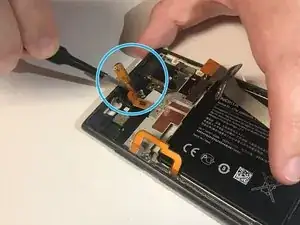

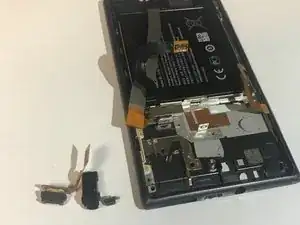

    • With a pair of tweezers, gently remove the orange colored tab closest to the speaker.

  10. oSZOS4JPDjpAHNvh
    • Pull at the orange section until it becomes loose.

    • It is located in the upper leftmost section of the phone behind the front camera.

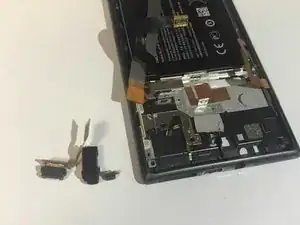

  11. TnANldkbPDTSj5ZC
    • Pull vertically on the same orange section until the front camera comes out.

    • The front camera as well as the speaker may come out after the last step so be careful.

Abschluss

To reassemble your device, follow these instructions in reverse order.
