Nokia X Speaker Replacement

Remove the back cover of the device by applying light pressure toward the outer rim and display.

Remove 7 (size 4 M1 4*3.5) and 4(size 6 M2 6*4.5) screws using P5 hex screwdriver.

The M2 screws are shown in red.

The M1 screws are shown in orange.

Gently separate the display from the chassis.

Slowly spread the display and chassis until the inside of the device is reachable.

Using the spudger tool, release the top flex ribbon from the light swap package.

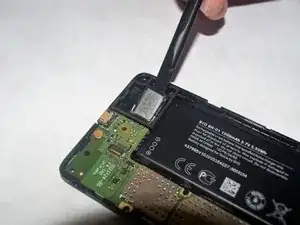

Use a nylon spudger to pry off the speaker and speaker gasket.

Put a new speaker back into the speaker gasket.
