Nokia XL Dual SIM Motherboard Replacement

Geschrieben von: Christopher Weaver
  • Kommentare: 3
Nokia XL Dual SIM Motherboard Replacement

Schwierigkeitsgrad

Moderate

Schritte

8

Zeitaufwand

15 - 30 Minuten

Einleitung

This replacement guide will save you from having to buy a new phone by showing you how to replace the motherboard of your Nokia XL Dual SIM Android Smartphone.

  1. 2QGvQWujEJj1nqVY

    • You will first need to separate the back cover from the device.

    • Gently pry open each side of the device at the indicated locations. It is best to use a plastic opening tool or similar tool.

  2. AfLTadNr1Yt1YxR1
    AfLTadNr1Yt1YxR1
    h6fi1TPJqEGtqBQQ

    • Remove the back cover.

    • Use a plastic opening tool to lift the battery. Then, remove it.

  3. pxMG1rXiLFJbPYWK
    pxMG1rXiLFJbPYWK
    6iwvKBxie5YnS6gC

    • To access the inner components of the device, remove the various screws. Keep them separate, and organize them by size.

    • You will need a T5 Precision Torx screw driver to remove the screws.

    • The locations of the T5x3.4mm screws are indicated in the picture.

    • The locations of the T5x4.1mm screws are indicated in the picture.

  4. K13UT5VBhNNSyZSE
    K13UT5VBhNNSyZSE
    XEDoSRo5TPFU45yM
    QlGeK3L1TnrfZkNP

    • Use the plastic opening tool to gently pry the device apart.

    • There are flaps on both sides of the phone as indicated in the picture. This is what you will need to pry apart.

    • Please be cautious when opening the device. There are various connectors inside the device that must be handled with care.

  5. mYAjMMjRaaQhKtnN

    • Once the device is open, take note of all the components.

  6. OhsKgYukhBTEl3oW
    OhsKgYukhBTEl3oW
    YAXGdgjPBTAGjySu

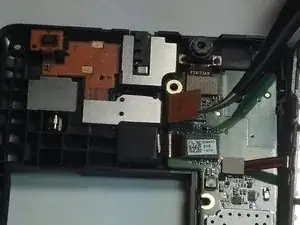

    • With tweezers, gently unsnap the motherboard connectors for all components.

    • The location of all the connectors is indicated in the next step.

    The lighting could be better for the images in both of these steps.

    Dan Brown -

  7. c5eFc3YCoodJQnqU
    c5eFc3YCoodJQnqU
    HhILhU6qKQY2AkPj
    Ek6pWXwRMWnUuKXm

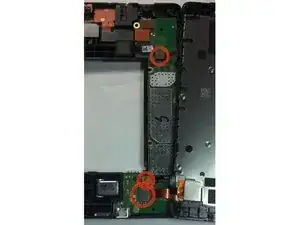

    • The 3 motherboard connectors for the touchscreen, volume buttons, and power/screen lock button assembly are indicated on the picture.

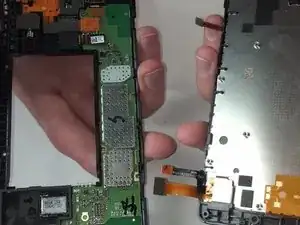

    • The touchscreen assembly can now be removed and set aside.

    • The motherboard connector for the front camera is indicated on the picture.

    • The motherboard connector for the camera flash, vibrator, and headphone jack assembly is indicated in the picture.

    • The motherboard connector for the front camera is indicated on the picture.

  8. V4TtvkDhNPr1XKTv
    V4TtvkDhNPr1XKTv
    Ip12kDIPMdGrWY5H

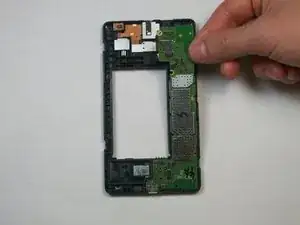

    • Gently pry up on the top underside of the motherboard with the small plastic opening tool.

    • Gently pulling upward on the motherboard will allow it to be removed.

Abschluss

To reassemble your device, follow these instructions in reverse order.
