Nokia XL Dual Sim Front Camera Replacement

Geschrieben von: Shadeed Bilal
  • Kommentare: 1
Nokia XL Dual Sim Front Camera Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

15 - 30 Minuten

Einleitung

Use this guide on your quest to becoming a "selfie master" by replacing a damaged or non-functioning front facing camera on your Nokia XL Dual Sim.

  1. 2QGvQWujEJj1nqVY

    • You will first need to separate the back cover from the device.

    • Gently pry open each side of the device at the indicated locations. It is best to use a plastic opening tool or similar tool.

  2. AfLTadNr1Yt1YxR1
    AfLTadNr1Yt1YxR1
    h6fi1TPJqEGtqBQQ

    • Remove the back cover.

    • Use a plastic opening tool to lift the battery. Then, remove it.

  3. pxMG1rXiLFJbPYWK
    pxMG1rXiLFJbPYWK
    6iwvKBxie5YnS6gC

    • To access the inner components of the device, remove the various screws. Keep them separate, and organize them by size.

    • You will need a T5 Precision Torx screw driver to remove the screws.

    • The locations of the T5x3.4mm screws are indicated in the picture.

    • The locations of the T5x4.1mm screws are indicated in the picture.

  4. K13UT5VBhNNSyZSE
    K13UT5VBhNNSyZSE
    XEDoSRo5TPFU45yM
    QlGeK3L1TnrfZkNP

    • Use the plastic opening tool to gently pry the device apart.

    • There are flaps on both sides of the phone as indicated in the picture. This is what you will need to pry apart.

    • Please be cautious when opening the device. There are various connectors inside the device that must be handled with care.

  5. mYAjMMjRaaQhKtnN

    • Once the device is open, take note of all the components.

  6. EwRrgjkuudEVgSnD
    EwRrgjkuudEVgSnD
    5eRFeRpr4jMo6xNi
    oC2kNdSaQSrjJSFF

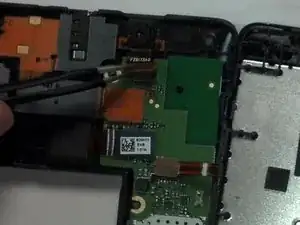

    • With Tweezers, gently unsnap the front camera motherboard connector.

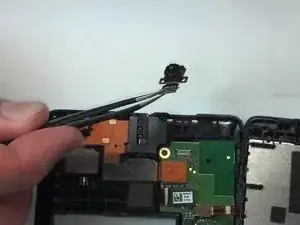

    • The front camera component can now be gently removed.

Abschluss

To reassemble your device, follow these instructions in reverse order.
