Nokia XL Dual Sim Rear Camera Replacement

You will first need to separate the back cover from the device.

Gently pry open each side of the device at the indicated locations. It is best to use a plastic opening tool or similar tool.

Remove the back cover.

Use a plastic opening tool to lift the battery. Then, remove it.

To access the inner components of the device, remove the various screws. Keep them separate, and organize them by size.

The locations of the T5x3.4mm screws are indicated in the picture.

The locations of the T5x4.1mm screws are indicated in the picture.

Use the plastic opening tool to gently pry the device apart.

There are flaps on both sides of the phone as indicated in the picture. This is what you will need to pry apart.

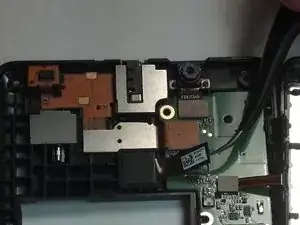

Once the device is open, take note of all the components.

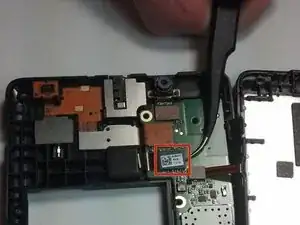

With tweezers, gently release the rear camera motherboard connector.

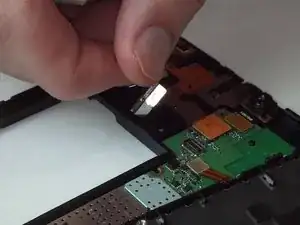

Gently pull the motherboard connector upward to remove the rear camera component.
