Nook Color Battery Replacement

Schwierigkeitsgrad

Moderate

Schritte

8

Zeitaufwand

10 - 15 Minuten

Einleitung

Be cautious when removing the back panel of the device. Buttons tend to become loose and fall out of place. Some force is necessary in removing the back and front panels.

  1. SS4qDnHDG4jXitSZ
    SS4qDnHDG4jXitSZ
    OCttAjMLTlARvVhR

    • Remove the two 3.8 mm screws located in the back right corner of the device using the T5 Torx screwdriver.

  2. pQ1OsPkRfBA361TG
    pQ1OsPkRfBA361TG
    CXWt1etUkvDI1CMU

    • Pry off the back cover with the plastic opening tool. Go around the device with the tool to ensure complete detachment.

  3. 3XPxMarkoLcYTLCP

    • Remove the ten 4.0 mm screws from the device's perimeter using the T5 Torx screwdriver.

  4. ThASIIxj4RjPimrD
    ThASIIxj4RjPimrD
    NdGZ4sUZabsDujlO

    • Pry off the front panel using the plastic opening tool.

  5. o3WGHa5i6cLmXdPO
    o3WGHa5i6cLmXdPO
    gYcgKjssddw2LAMY

    • Lift up on the connectors to disconnect them using the plastic opening tool.

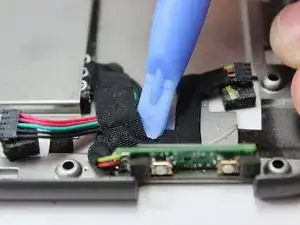

  6. pXUbXXxJh6oBWrTN
    pXUbXXxJh6oBWrTN
    jcoQVgLxfcKqKabB

    • Remove the tape which holds the wiring to the battery using a plastic opening tool.

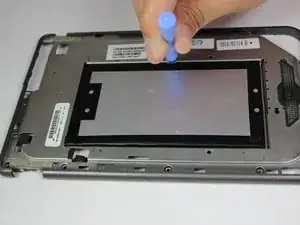

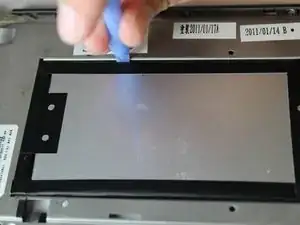

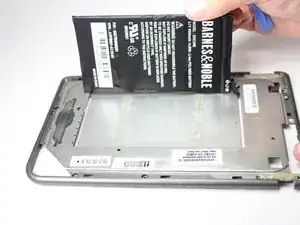

  7. ML2kRfI2m6cuQkwm
    ML2kRfI2m6cuQkwm
    EHsufEqsCfYfO6yk
    qbGQvxYUUwADmNbd

    • On the back side of the middle panel, pry the battery using the plastic opening tools.

    • Use of force is necessary since the battery is glued down.

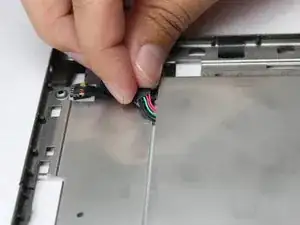

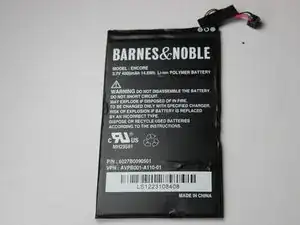

  8. AkTZV2f2rqaKoGck
    AkTZV2f2rqaKoGck
    CGEySU1U5xkrMhfV

    • Slide the connecting wire through the opening of where the battery was placed.

Abschluss

To reassemble your device, follow these instructions in reverse order.
