Nook Color Buttons Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

10 - 15 Minuten

Einleitung

While removing faulty or damaged buttons, use caution as the buttons may fall out of place while removing the back panel. If buttons do not fall out, a little bit of force will be required in pulling them out of place.

  1. SS4qDnHDG4jXitSZ
    SS4qDnHDG4jXitSZ
    OCttAjMLTlARvVhR

    • Remove the two 3.8 mm screws located in the back right corner of the device using the T5 Torx screwdriver.

  2. pQ1OsPkRfBA361TG
    pQ1OsPkRfBA361TG
    CXWt1etUkvDI1CMU

    • Pry off the back cover with the plastic opening tool. Go around the device with the tool to ensure complete detachment.

  3. 3XPxMarkoLcYTLCP

    • Remove the ten 4.0 mm screws from the device's perimeter using the T5 Torx screwdriver.

  4. ThASIIxj4RjPimrD
    ThASIIxj4RjPimrD
    NdGZ4sUZabsDujlO

    • Pry off the front panel using the plastic opening tool.

  5. o3WGHa5i6cLmXdPO
    o3WGHa5i6cLmXdPO
    gYcgKjssddw2LAMY

    • Lift up on the connectors to disconnect them using the plastic opening tool.

  6. bFB1dwpWCqSZlQ4x
    bFB1dwpWCqSZlQ4x
    WMZtGCLaYyZXEDTv
    dvJSZshwRRDTI4Ga

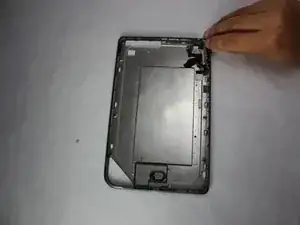

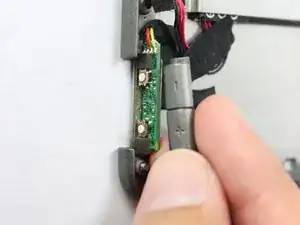

    • Once you have removed both the back and front panels of the device, you will isolate the panel which contains the buttons. You will remove the volume buttons on the top right first. Use some force upwards and the button will slide free.

  7. ukLmAyZ2YZmnXfAU
    ukLmAyZ2YZmnXfAU
    elNFDTALOPNoI1WE
    s5MYZpGxOkRZKNkP

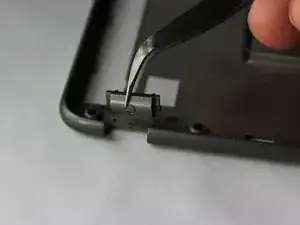

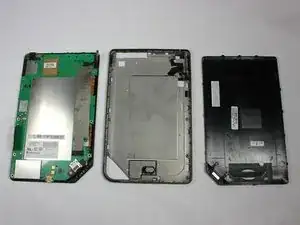

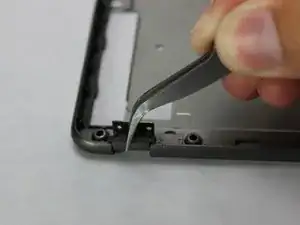

    • Next, you will remove the power button from the top left of the middle portion of your device. Using tweezers you will carefully lift the button from where it sits and remove it.

Abschluss

To reassemble your device, follow these instructions in reverse order.
