Nook Color Front Cover Replacement

Geschrieben von: Matthew Perdomo
  • Kommentare: 0
Nook Color Front Cover Replacement

Schwierigkeitsgrad

Moderate

Schritte

5

Zeitaufwand

Keine Schätzung

Einleitung

  1. SS4qDnHDG4jXitSZ
    SS4qDnHDG4jXitSZ
    OCttAjMLTlARvVhR

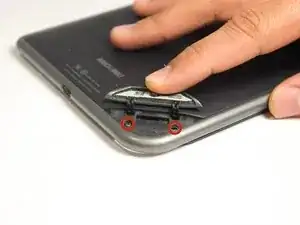

    • Remove the two 3.8 mm screws located in the back right corner of the device using the T5 Torx screwdriver.

  2. pQ1OsPkRfBA361TG
    pQ1OsPkRfBA361TG
    CXWt1etUkvDI1CMU

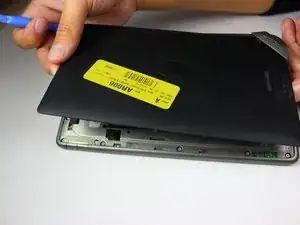

    • Pry off the back cover with the plastic opening tool. Go around the device with the tool to ensure complete detachment.

  3. 3XPxMarkoLcYTLCP

    • Remove the ten 4.0 mm screws from the device's perimeter using the T5 Torx screwdriver.

  4. ThASIIxj4RjPimrD
    ThASIIxj4RjPimrD
    NdGZ4sUZabsDujlO

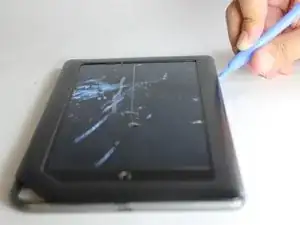

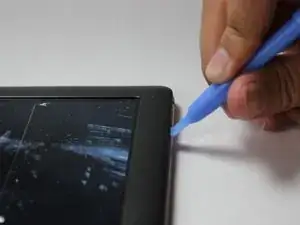

    • Pry off the front panel using the plastic opening tool.

  5. o3WGHa5i6cLmXdPO
    o3WGHa5i6cLmXdPO
    gYcgKjssddw2LAMY

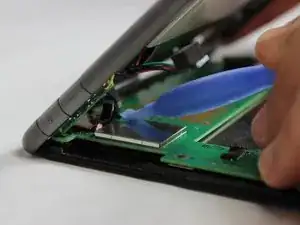

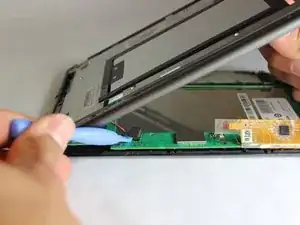

    • Lift up on the connectors to disconnect them using the plastic opening tool.

Abschluss

To reassemble your device, follow these instructions in reverse order.
