Nook HD+ Speaker Replacement

Geschrieben von: Alex Pelicas
  • Kommentare: 2
Nook HD+ Speaker Replacement

Schwierigkeitsgrad

Moderate

Schritte

4

Zeitaufwand

15 - 20 Minuten

Einleitung

Steps to replace a broken speaker in the Nook HD+ tablet.

  1. YVvsJxNkdiBMtUGI

    • Wedge the plastic opening piece underneath the bottom left hand corner of the front frame

    • Pry open the front frame.

  2. 42BPcSwjU4LTWw55
    42BPcSwjU4LTWw55
    UMeYk3IA5hjvDRFr

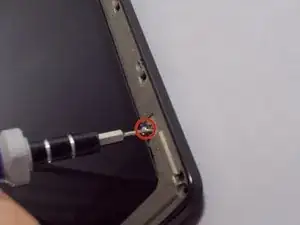

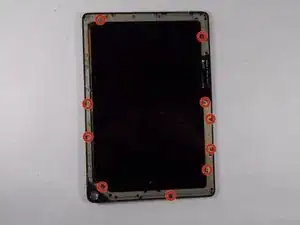

    • Remove every visible screw tying the chassis to the bottom frame using a T-4 screwdriver bit.

  3. R5SN5lJGfImS4kaZ
    R5SN5lJGfImS4kaZ
    HXrSTHWUZjKNM5IQ

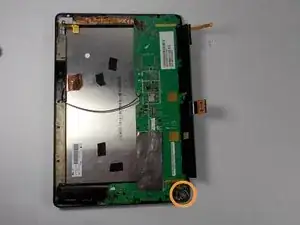

    • Carefully remove the bottom frame from center chassis.

    • Detach the battery ribbon from the motherboard.

    • Flip the center chaise onto the screen side with the hole positioned on the bottom right hand corner.

  4. pJDAtfkOuyRDP5d2

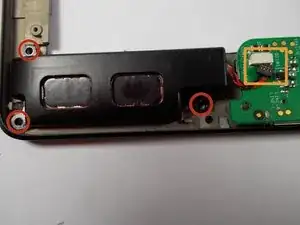

    • In the bottom left hand corner remove the 3 screws that at attached to the speaker

    • Disconnect the small red and black ribbon connected to the speaker from the white clip on the mother board.

    • Replace old speaker with new speaker then follow instructions in reverse order to reassemble

    Knowing what part to purchase for the speaker itself would help. It doesn’t appear to be an off the shelf part so it’d have to be pulled from an existing unit. Found one on eBay, so I’ll be using this and my iFixit toolkit to make the swap.

    Jamal Taylor -

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Alex Pelicas

Mitglied seit: 17/10/14

283 Reputation

Ein Kommentar

After purchasing a replacement speaker, these steps worked well. Process to a fairly relaxed 20 minutes.

The only thing I’d add is that the speaker is part # AAC121217U22A, and appears to be a bespoke part containing two speakers.

Knowing what part to look for may help others looking for a replacement part.

Jamal Taylor -
