Nook HD Battery Replacement

Geschrieben von: Gregory Irwin
  • Kommentare: 6
Nook HD Battery Replacement

Schwierigkeitsgrad

Easy

Schritte

5

Zeitaufwand

15 - 30 Minuten

Einleitung

  1. SYZ1QkmWdN42ynUX
    SYZ1QkmWdN42ynUX
    5kujQmmMNnNIuSe3
    I2iLF6IJMRWobLtS

    • Be sure the device is powered off. Clean the device to prevent any dirt and dust from entering into the device.

    • Use the plastic opening tool to gently pry the plastic screen frame away from the screen. Run the plastic opening tool along the interior edge of the screen until the screen frame is completely separated from the glass.

    • The screen frame is held onto the Nook by a set of tab that run around the outside of the frame. There may also be a line of rubber cement around the Nook under the screen frame. If your Nook has this, you will have to dig deep to separate the frame from the Nook.

    This is by far the hardest step, if your Nook is like mine. There was a line of rubber cement around the Nook under the cover. If you have trouble removing the cover, do not be afraid to dig deep with your plastic prying tool. BTW, do not try this without the plastic prying tool!

    David Gauntt -

  2. BRL2anvKLRkfYHMv
    BRL2anvKLRkfYHMv
    ElVIWnQhPKaApYSI

    • Use a T5 screwdriver to remove the seventeen 5.0 millimeter screws from the back casing.

  3. NmodQKNPjoA6aSOA
    NmodQKNPjoA6aSOA
    ToK6uOGjPMr6NwPg
    tSNFPXoOUxXXEOqn

    • Slowly pull the back casing away from the screen and motherboard.

    • There is a cable attaching the battery in the back plate to the motherboard. Avoid detaching either end of the cable during this step.

  4. SHDK2TdO3sikVRtv
    SHDK2TdO3sikVRtv
    QrHinPRlNNRcVACW
    KoUuCRC1yaR4sh3X

    • Use the plastic opening tool to gently unclip the wire from the pins by pulling the white connector up.

  5. Kya362vh1jU4UmP6
    Kya362vh1jU4UmP6
    MWceZwB6AGUOwAlp

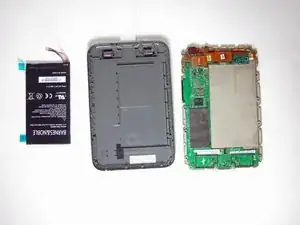

    • Use the plastic opening tool to lever the battery out of the back plate by inserting it under the side and pulling up gently.

    ok then so when and how are we supposed to fix it?

    Austin Schaaf -

    After removing the back case, remove the SD cover completely from the case. Reinsert after reassembling. It doesn’t matter if this is when the unit is put back together. Don’t forget the sticky strips on the old battery - transfer them to the new one. Attaching the battery connector is a bit tricky. Align the white connector with the terminals and push straight down until the white plastic clicks into the black plastic surround. Alternately, you can ‘lever’ it down from the edge with the wires toward the edge with the connectors. You’ll know you have it when the unit turns on. Be sure it is secure before reassembling. Finally, tilt the motherboard toward the bottom of the back case when putting back together so that the charger slot aligns with the charger port. That’s why you need to remove the SD cover ; )

    Patrick Ogren -

Abschluss

To reassemble your device, follow these instructions in reverse order.
