Nook Tablet Display Replacement

Flip the Nook over.

Lift the flap that reads "Nook" to reveal the tape that is underneath. Remove the memory card if one is present.

Remove the tape covering the round holes to reveal two T5 Torx screws.

Remove the two T5 Torx screws securing the back cover.

Insert the flat end of a spudger between the front panel and the rear assembly.

Use a spudger to lift the the back panel from the rest of the Nook.

Slide the spudger around the edges of the Nook to loosen the back panel.

Pull the back panel off the Nook.

Remove the ten T5 screws from around the edges of the silver midframe.

Using a spudger or plastic opening tool, carefully pry the screen bezel away from the silver midframe.

Lift up the foam pad at the corner of the battery to reveal the battery connector.

Use a spudger or plastic opening tool to disconnect the battery cable from the motherboard.

Lift up the foam that covers the power connector and volume connector.

Disconnect the power and volume cables from their sockets on the motherboard.

Carefully lift the silver midframe away from the motherboard and display assembly.

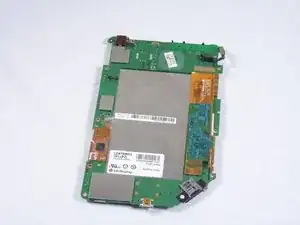

Orient the mother board as shown, so that the screen is facing downwards.

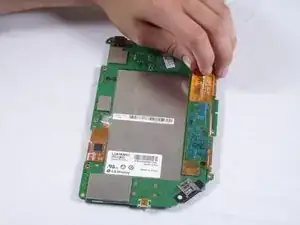

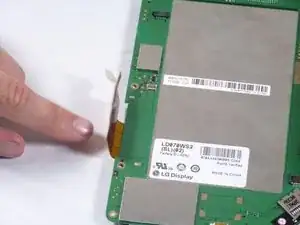

Grab the corner of the orange strip on the right side of the mother board as shown.

The orange strip is adhered to the mother board, gently lift the strip so that the adhesion is broken.

The strip will still be attached by the circuit connection to the mother board, proceed to the next step.

The orange strip will still be attached at this point

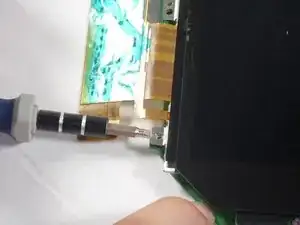

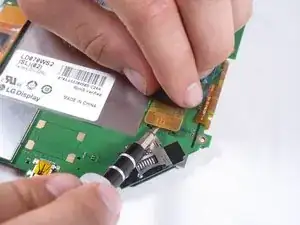

Insert the end of a flat head screw driver between the connection of the strip and mother board and pry upward.

Grab the strip and gently pull upward to finish the disconnection.

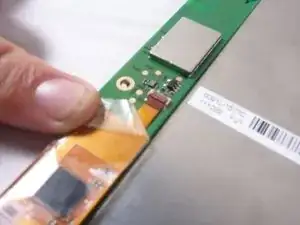

On the left side of the motherboard, you will see another orange strip, this one is taped down to the motherboard.

Remove the tape.

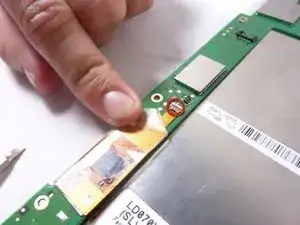

After the tape has been removed, the strip will still be attached to the motherboard by the hinge pictured here.

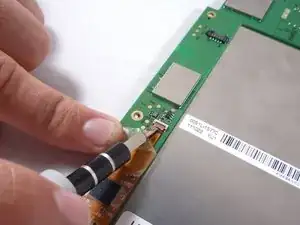

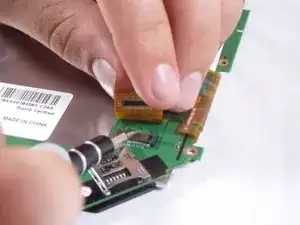

Slide the tip of a flat head screwdriver under the hinge and pry the hinge upward.

The orange strip should now be detached from the mother board.

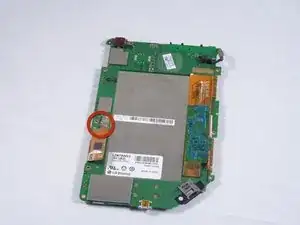

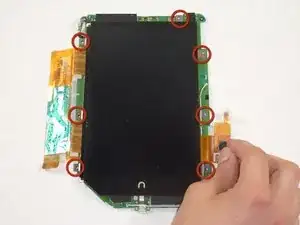

The screen is adhered to the mother board at the screw holes marked

Break the adhesion by inserting the edge of a flat head screwdriver inbetween the motherboard and the pieces of the screen at the marked holes

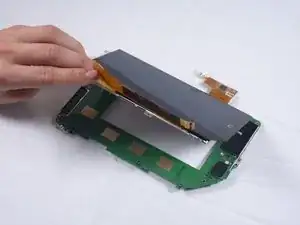

Lift the screen from the display.
