Nostalgia Chocolate Fondue Fountain CFF965 Base Bowl Replacement

Geschrieben von: Kristen Gismondi
  • Kommentare: 2
Nostalgia Chocolate Fondue Fountain CFF965 Base Bowl Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

Keine Schätzung

Einleitung

  1. 6fZhrCKGCxNOygK1

    • Lift the tiered tower away from the base bowl with your hands to remove it.

  2. rQCNIYBrTeCtGeK5
    rQCNIYBrTeCtGeK5
    6cD5SIXN4dZjkILb

    • Lift the auger up and away from the base bowl by hand to remove it.

    How can I order parts I need the auger

    Veronica A Guerrero -

    2. Auger washer size

    aahacateringservice -

  3. VJQKiodNZNZsPUx1

    • Flip the base over.

    • Unscrew the 21.3 mm "feet" screws by hand.

  4. IITLnmvlDwYAHFOS
    IITLnmvlDwYAHFOS
    eZOHkw5T3oHdoKFc
    SmRDjVmkKrH1BpiT

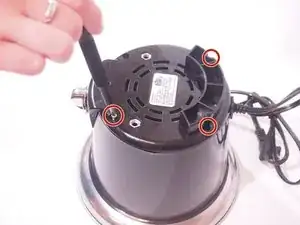

    • Unscrew the three 14.2 mm screws with a Phillips #2 screwdriver.

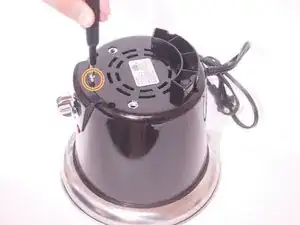

    • Unscrew the 9.1 mm screw near the switch with a Phillips #2 screwdriver.

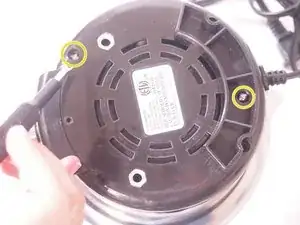

    • Unscrew the two 14.2 mm spanner screws using a spanner screwdriver (size 6).

  5. oJjIuWxMuJBfuAvL
    oJjIuWxMuJBfuAvL
    KcSQK5jvdYGvCLLK

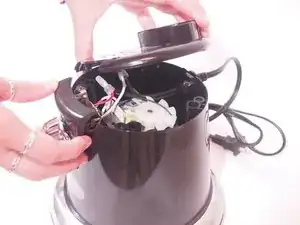

    • Pull up on the baseplate by hand to remove it.

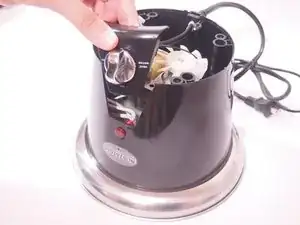

    • Pull the switch component up by hand.

  6. WpwvYTK4hxMUMjJZ

    • Unscrew the two 22.1 mm machine screws that secure the motor with a Phillips #2 screwdriver.

    • Remove their adjoining 5.9 mm washers by hand.

  7. snKWWWAZW4KV3auB
    snKWWWAZW4KV3auB
    EHcBHhdDyVbvtJMb
    TxXWqplbk1qTTTKe

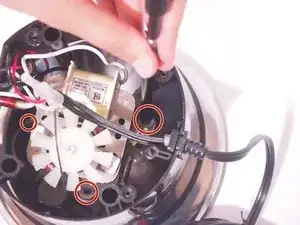

    • Unscrew the three 25.4 mm Phillips #2 sheet metal screws that connect the base bowl to the white plastic structure.

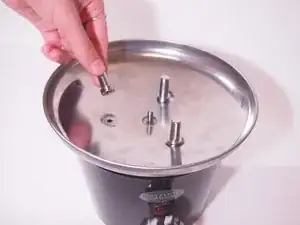

    • When unscrewing, make sure to hold the metal tower studs on the opposite side of the base bowl (see the second picture). This will make it easier to unscrew the screws.

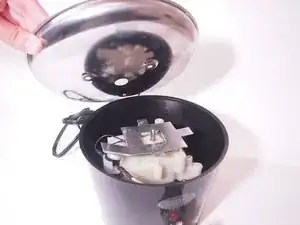

    • Flip the base over and remove the base bowl by hand.

Abschluss

To reassemble your device, follow these instructions in reverse order.
