Nostalgia Electrics PCM805 Power Switch Replacement

Geschrieben von: Carlton
  • Kommentare: 1
Nostalgia Electrics PCM805 Power Switch Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

10 - 15 Minuten

Einleitung

Use this guide to replace the switch if the device will not turn on when receiving power.

  1. iiLSZ6eBRmIAZdKU
    iiLSZ6eBRmIAZdKU
    62gqUaTqraRukNwk

    • Unplug the device before following this guide.

    • First, place the device on its side, making sure the switch is not facing down.

    • Remove the eight 12mm Phillips #02 screws from the base.

  2. iDkKKOYTSlDkCh6w

    • Gently separate the panel from the device.

    • Be sure not to tug at the wires that are still connected.

  3. v6OE34iRuNanSK1p

    • Locate the switch/wire assembly inside the device.

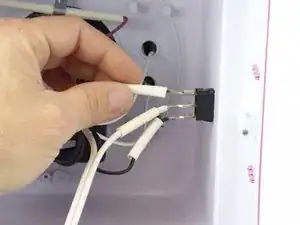

  4. WOmVSIEVJGrrqvKW

    • Pull back the insulation sleeves to expose the connector heads.

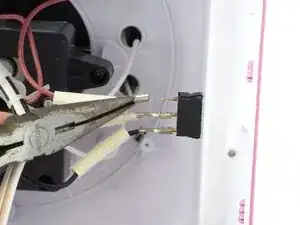

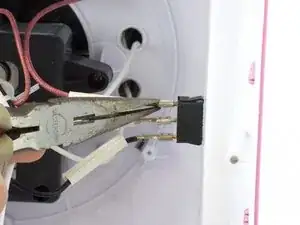

  5. PuOiVJkBCC6tEGSG
    PuOiVJkBCC6tEGSG
    KwQ2N4qehNNpFrwS

    • Note the color of each wire and the order you remove them.

    • Using a pair of pliers, firmly grip the base of the wire.

    • Be sure to grip where the connector meets the wire and not where the connector covers the switch prong.

    • Pull the wire straight out of the switch.

    • Repeat this step for each wire.

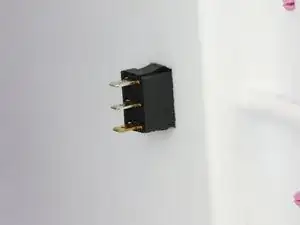

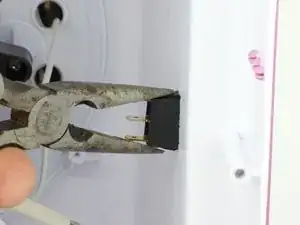

  6. d4qvgkDDSgVQHR4o
    d4qvgkDDSgVQHR4o
    JCqXhBoelFfQTeXp

    • Using pliers, pinch tabs at the top and bottom of switch.

    • While pinching the tabs, push the switch until the tabs are on the outside of the device.

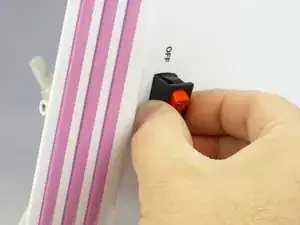

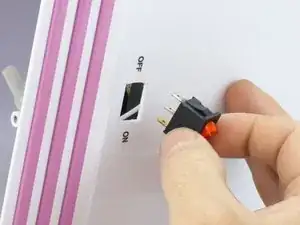

  7. TvshoIvorb6L1bfx
    TvshoIvorb6L1bfx
    URLWQBXYH2enrFqI

    • Remove the switch from the device.

Abschluss

To reassemble your device, follow these instructions in reverse order.
