Nostalgia Electrics PCM805 Stand Replacement

Geschrieben von: Carlton
  • Kommentare: 0
Nostalgia Electrics PCM805 Stand Replacement

Schwierigkeitsgrad

Easy

Schritte

4

Zeitaufwand

15 Minuten

Einleitung

Use this guide to replace the stands on the bottom of the device if they are missing or damaged.

  1. iiLSZ6eBRmIAZdKU
    iiLSZ6eBRmIAZdKU
    62gqUaTqraRukNwk

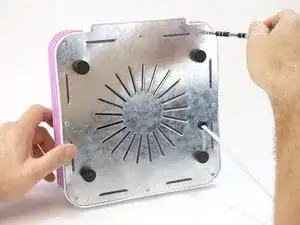

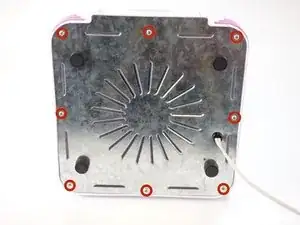

    • Unplug the device before following this guide.

    • First, place the device on its side, making sure the switch is not facing down.

    • Remove the eight 12mm Phillips #02 screws from the base.

  2. iDkKKOYTSlDkCh6w

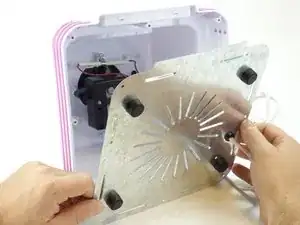

    • Gently separate the panel from the device.

    • Be sure not to tug at the wires that are still connected.

  3. eFI2bnffmAFmOTvZ

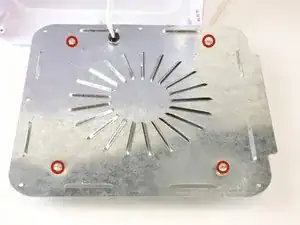

    • Locate the four 10mm Phillips #02 screws on the inside of the panel.

  4. o5bmfbHwD2OZp5Oo
    o5bmfbHwD2OZp5Oo
    QAkWSPjOXyKuIgiO
    r1eDCJYJVEUwSZnO

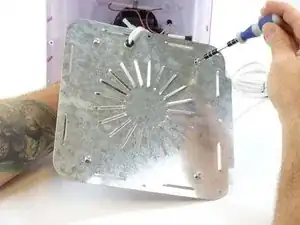

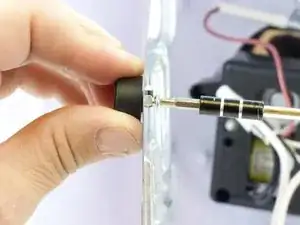

    • Remove the screw of the foot you plan to replace.

    • Place your finger on the back of the the foot you are unscrewing for support.

Abschluss

To reassemble your device, follow these instructions in reverse order.
