Nostalgia Electrics RHP-310 Disassembly for cleaning

Geschrieben von: Dana Clarke

Kommentare: 1

Nostalgia Electrics RHP-310 Disassembly for cleaning

Schwierigkeitsgrad

Difficult

Schritte

Zeitaufwand

25 - 30 Minuten

Einleitung

This guide will describe the maintenance of the device.

Werkzeuge

Schritt 1

Unplug the popper.
Remove the plastic lid by lifting the lid up.

Schritt 2

Lay the popper on its side.
Remove the five 12mm Philips #2 screws around the perimeter of the base with the Phillips #2 phillips head screwdriver.
Remove the two 15mm Philips #2 screws in the center of the base with the Phillips #2 phillips head screwdriver.
Save the screws you remove from the base in a safe place. They will be needed to reattach the housing to the base.

Schritt 3

Flip the base to view the interior surface of the base.
Unscrew the two screws (10 mm Philips #2 screws) from the base.
Remove the base and set it aside.

Schritt 4

Locate the power switch connected to the side of the housing.
Carefully pinch the sides of the power switch.
Push the power button up and out of the housing.

Schritt 5

Now that the power switch is removed from the housing, you must remove the wires connected to the power switch.
Use the plastic opening tool to gently pry the wires loose from the power switch.
The wires should easily pop out from the power switch.

Schritt 6

Remove the power switch from the device.
You can now replace the power switch if necessary.

Schritt 7

Now that the power switch is disconnected from the popper, you will need to remove the white top.
Gently remove the heating component from the popper.
Unscrew the four screws (11mm Philips #2 screws) that connect the white top to the housing.

Schritt 8

Remove the white top from the housing.
Save the screws from previous step. You will need them to connect the new housing to the white top.

Schritt 9

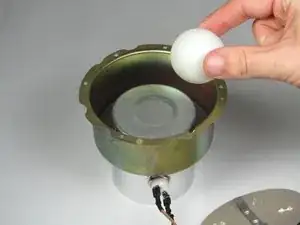

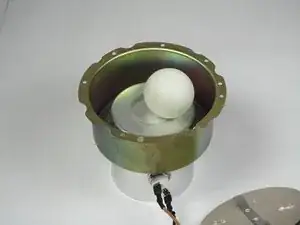

Now that the white top is disconnected from the housing, remove the heating component from inside the device.

Schritt 10

Unscrew the three screws (10 mm Philips #2 screws) that hold the heating component together.

Schritt 11

Make sure to keep the screws. You will need them to put the heating component back together.

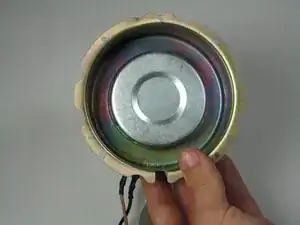

Pull the heating component apart.

Schritt 12

Locate the fan.
Pull the fan off the motor firmly but gently.
When you pull the fan off the motor, be careful. Do not pull to hard or you will break the motor.

Schritt 13

You can now replace the fan.
If there is debris stuck in the fan, you can easily clean it out from the fan in this step.
