Nostalgia GCM200 Power Cable Replacement

Schwierigkeitsgrad

Easy

Schritte

4

Zeitaufwand

5 - 8 Minuten

Einleitung

This is a replacement guide that teaches you how to replce power cable for Nostalgia GCM-200.

  1. s4RmkfZ2rRrQjNQP
    s4RmkfZ2rRrQjNQP
    nk5LcHgpTGjeMmH6

    • Remove the two 1.3 mm Phillips #2 screws.

    • Remove the S6 spanner screw.

    • Carefully place these three screws somewhere safe to use later in reassembly.

  2. FUDqoPOHUgsC2VWk

    • Split the device in half to expose the internal parts of the device.

    • Again, there are two more Phillips screws to remove.

  3. OFfL2SEnaZKFsdJO

    • Remove the two screws from both sides of the heating coil.

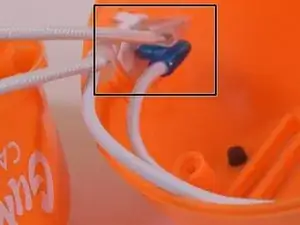

  4. 5KeAHRTcLebu1HWU

    • Remove (flexible) plastic sleeves from the inside end of the power cable.

    • You might want to use force, pull out while shaking it.

Abschluss

To reassemble your device, follow these instructions in reverse order.
