How to access and replace the speakers. Make sure to carefully handle any wires so they are not damaged.

  1. GFQAViPOFZL2mtYh
    GFQAViPOFZL2mtYh
    Oi1SK2yNtokuMUyh
    QudIKAxXjRbJkWsv

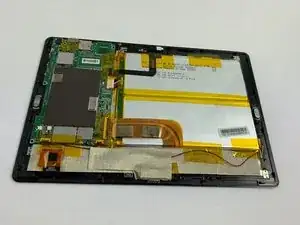

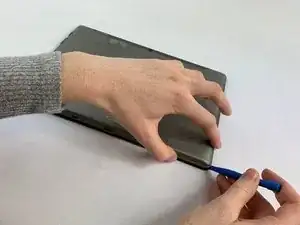

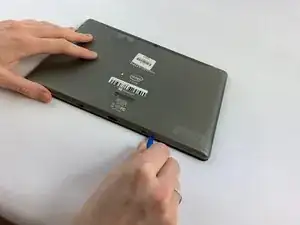

    • Turn the device screen side down.

    • Carefully remove the back piece with the iFixit opening tool.

  2. WcOPcYpU5VxKeVTI

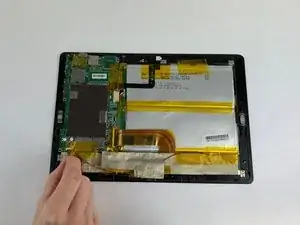

    • Remove the yellow tape covering the motherboard gently with your fingers.

  3. B4tDJROgtZTLIbgv

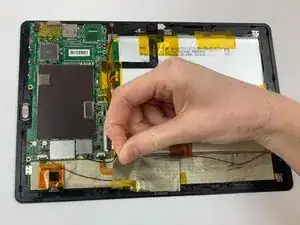

    • Carefully remove silver tape with your fingers.

  4. pNsupJxsFWvdqrZ4
    pNsupJxsFWvdqrZ4
    H1xMN4BpoOVtxD65

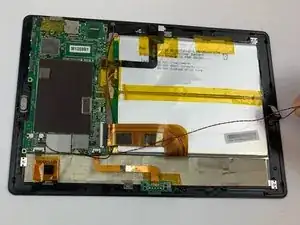

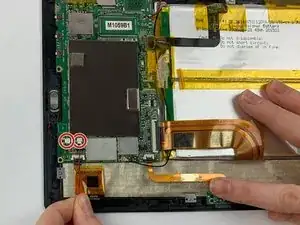

    • Remove speakers gently using your fingers, they pop out easily.

    • Disconnect cords attached to the speaker from white pod.

Abschluss

To reassemble your device, follow these instructions in reverse order.
